| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
762 pcs
|
762 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
73 pcs
|
73 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| Standard Package Quantity | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

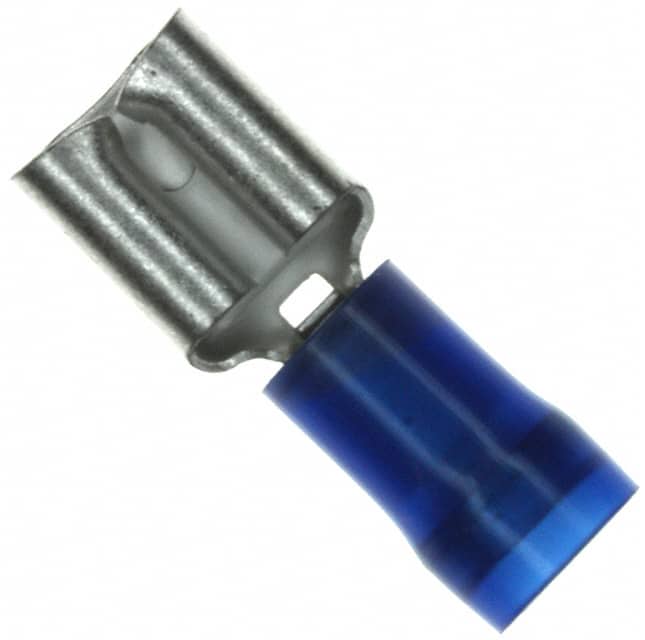

The DNF14-250-M is a female quick disconnect receptacle manufactured by Panduit Corporation. It is designed for 14-16 AWG wire and features a 0.250" (6.35mm) tab width with 0.032" (0.81mm) tab thickness, making it suitable for standard quick disconnect applications. The terminal uses a crimp termination method and is mounted in-line (free hanging).
The contact is made of copper with a tin finish, providing reliable electrical conductivity and corrosion resistance. It features serrated termination for improved wire grip and a non-mating end insulation that is color-coded blue for easy identification. The overall length is 21.08mm (0.830").
This connector is part of the DNF series of nylon, funnel entry barrel insulated disconnects. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). The standard package quantity is 1000 pieces (typical, not confirmed).
Typical applications include power distribution, control panels, and automotive wiring where reliable quick connections are needed. The free hanging mounting allows for flexible installation in wire harnesses.
Free Hanging (In-Line).
14-16 AWG.
0.250" (6.35mm).
0.032" (0.81mm).
Copper with tin finish.
Blue.
21.08mm (0.830").
