| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA Certification | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Failure Rate | |
| Features | |
| Funnel Entry | |
| Gender | |
| Height | |
| Housing Material | |
| Insulation | |
| Length | |
| Mating Force (Initial) | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature (Maximum @ CSA) | |
| Operating Temperature (Maximum @ UL) | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| UL Listing | |
| Voltage Rating | |
| Width | |
| Wire Gauge | |
| Wire Size (Metric) |

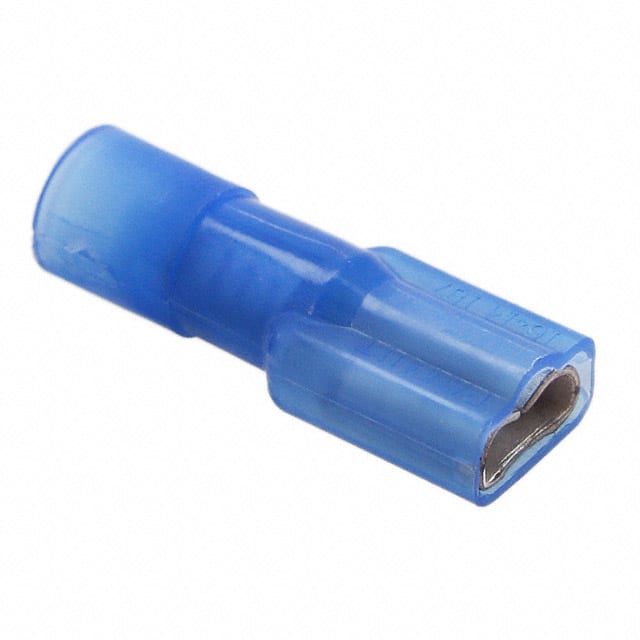

The Panduit DNF14-187FIB-M is a nylon-insulated female quick disconnect terminal designed for 14-16 AWG wire. It features a 0.187" (4.75mm) tab width and 0.032" (0.81mm) tab thickness, making it suitable for standard male quick disconnect tabs. The terminal uses a crimp termination style and is fully insulated with a blue nylon 66 housing.
This disconnect includes a funnel entry design for easier wire insertion and serrated termination for improved wire retention and electrical contact. The contact is made of tin-plated brass. The overall length is 19.81mm (0.780"), with a width of 7.4mm (0.29") and height of 4.6mm (0.18").
Rated for 600V maximum, the DNF14-187FIB-M has a maximum operating temperature of 105°C per CSA and 125°C per UL. It is UL listed (File E78522) and CSA certified (File LR31212). The mounting type is free hanging (in-line).
The terminal is designed for 14-16 AWG wire (1.5-2.5 mm²).
The tab width is 0.187" (4.75mm) and tab thickness is 0.032" (0.81mm).
The maximum voltage rating is 600V.
The maximum operating temperature is 105°C per CSA and 125°C per UL.
The mounting type is free hanging (in-line).
It is UL listed (File E78522) and CSA certified (File LR31212).
