| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id | |
| Weight |
The DMTH6016LFVWQ-7 is a 60V N-channel enhancement-mode MOSFET from Diodes Incorporated. It is rated for 41A continuous drain current at T_C=25°C and features a maximum drain-source on-resistance of 16mΩ at V_GS=10V and 27mΩ at V_GS=4.5V. The device is qualified to AEC-Q101 and supports operating junction temperatures up to 175°C, making it suitable for high-temperature automotive environments.
The gate is rated for ±20V, with a maximum gate threshold voltage of 2.5V. Gate charge is specified at 15.1nC, and input capacitance is 939pF. Power dissipation is rated at 1.17W at ambient temperature. These characteristics support efficient switching performance in DC-DC converters, backlighting, and power-management circuits.

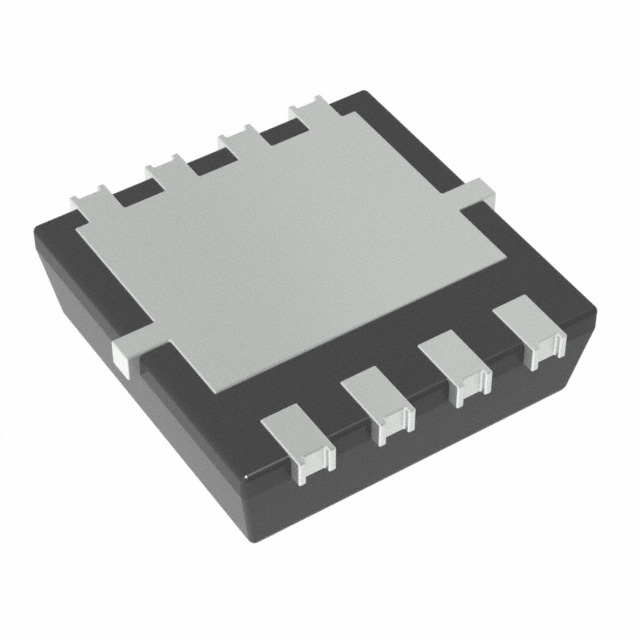

The MOSFET is housed in a PowerDI3333-8 (SWP) Type UX surface-mount package with wettable flanks for improved optical inspection. The package weighs approximately 0.03g, and the device is RoHS3 compliant, halogen-free, and lead-free. The tape-and-reel packing option (DMTH6016LFVWQ-7) supplies 2,000 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.16 | $1.16 |
| 10+ | $0.72 | $0.72 |
| 100+ | $0.47 | $0.47 |
| 2,000+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 60V.
The operating junction temperature range is -55°C to +175°C.
The device is available in a PowerDI3333-8 (SWP) Type UX surface-mount package.
Yes, the device is RoHS3 compliant and contains no purposely added lead.
The maximum continuous drain current is 41A at T_C = 25°C, and 31.6A when V_GS = 4.5V.
The maximum RDS(on) is 16mΩ at VGS = 10V and ID = 20A.
Yes, it is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.
