| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,005 pcs
|
2005 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Configuration | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs(th) (Max) @ Id |

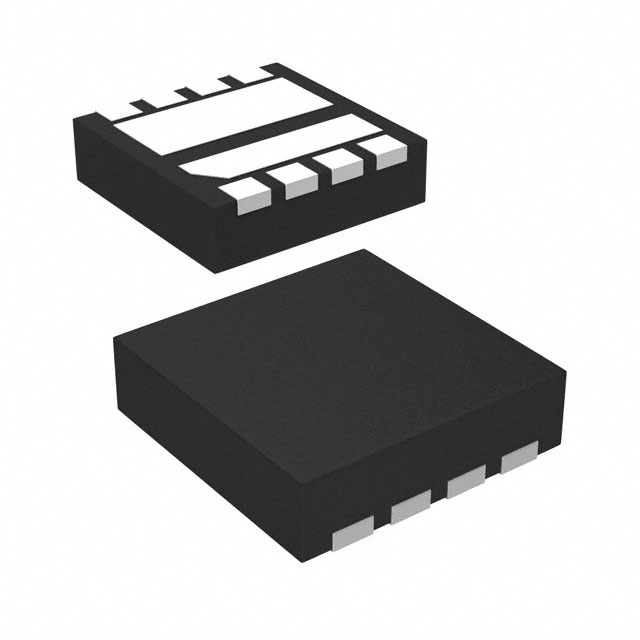

The DMT3009LDT-7 is a dual N-Channel enhancement mode MOSFET from Diodes Incorporated, designed to minimize on-state resistance while maintaining superior switching performance. It features two asymmetrical MOSFETs with a drain-source breakdown voltage of 30V and a maximum continuous drain current of 30A at a case temperature of 25°C. The on-resistance is 11.1 milliohms at VGS=10V, 13.8 milliohms at VGS=4.5V, and 22.0 milliohms at VGS=3.8V.
This MOSFET is suitable for general purpose interfacing switches and power management functions. It is housed in a V-DFN3030-8 (Type K) package with molded plastic, green molding compound rated UL 94V-0. The device is moisture sensitivity level 1 per J-STD-020 and is fully RoHS compliant, lead-free, and halogen-free.
The DMT3009LDT-7 is available in tape and reel packaging with 3,000 pieces per reel (DMT3009LDT-7) or 1,500 pieces per reel (DMT3009LDT-7A).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.54 | $1.54 |
| 10+ | $0.93 | $0.93 |
| 100+ | $0.65 | $0.65 |
| 500+ | $0.51 | $0.51 |
| 1,000+ | $0.46 | $0.46 |
| 3,000+ | $0.40 | $0.40 |
| 6,000+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30V.
30A at TC=25°C.
11.1 milliohms.
V-DFN3030-8 (Type K).
Yes, it is fully RoHS compliant and lead-free.
Level 1 per J-STD-020.
Available as DMT3009LDT-7 (3000 pcs tape and reel) and DMT3009LDT-7A (1500 pcs tape and reel).
