| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120,000 pcs
|
120000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id | |
| Weight |
The DMT3006LFDF-13 is an N-channel enhancement mode MOSFET from Diodes Incorporated. It features a drain-source voltage rating of 30V and a maximum continuous drain current of 14.1A at 25°C ambient. The device achieves a low on-resistance of 7mΩ at Vgs=10V, 10mΩ at 4.5V, and 15mΩ at 3.7V, enabling efficient power management in low-voltage applications.
This MOSFET is designed for high-efficiency power management, battery management, and DC-DC converter circuits. It offers fast switching speed and a low gate threshold voltage, making it suitable for logic-level drive applications. The device is qualified to AEC-Q101 standards for automotive reliability.

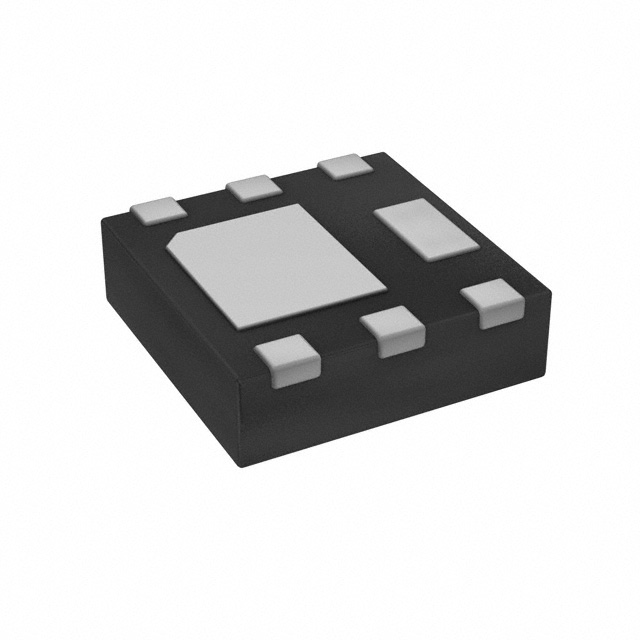

The package is a compact 6-UDFN (U-DFN2020-6 Type F) with an exposed pad for improved thermal performance. It has a 0.6mm profile, making it ideal for space-constrained designs. The part is fully RoHS3 compliant, lead-free, halogen-free, and antimony-free, with a moisture sensitivity level of 1. The DMT3006LFDF-13 is supplied on 13-inch reels with 10,000 units per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.94 | $0.94 |
| 10+ | $0.63 | $0.63 |
| 100+ | $0.40 | $0.40 |
| 500+ | $0.29 | $0.29 |
| 1,000+ | $0.24 | $0.24 |
| 2,500+ | $0.22 | $0.22 |
| 5,000+ | $0.20 | $0.20 |
| 10,000+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage (Vds) is 30V maximum.
It comes in a 6-UDFN exposed pad package, specifically the U-DFN2020-6 (Type F).
The junction temperature range is -55°C to 150°C.
Yes, it is RoHS3 compliant, lead-free, halogen-free, and antimony-free.
The maximum continuous drain current is 14.1A at Vgs=10V and Ta=25°C.
The maximum on-resistance is 7mΩ at Vgs=10V and Id=9A.
Yes, it is AEC-Q101 qualified.
