DMT1S15K

The DMT1S15K is a Type DMT polyester film/foil capacitor from Cornell Dubilier Electronics. It offers a capacitance of 0.015 µF with ±10% tolerance and a voltage rating of 100 VDC. The capacitor features a noninductively wound film/foil construction with an epoxy coating for moisture resistance, making it suitable for general purpose applications, especially those with high peak currents.

Key electrical characteristics include a dissipation factor of 1% maximum at 25°C and 1 kHz, and high insulation resistance of 30,000 MΩ·µF minimum (100,000 MΩ minimum). The dV/dt rating is 4550 V/µs, and the dielectric strength is 250% for 1 minute. The operating temperature range is -55°C to 125°C.

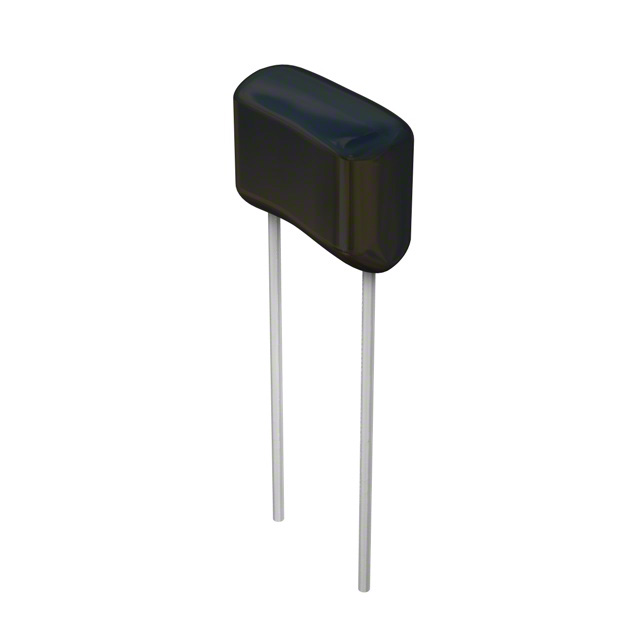

The capacitor is housed in a radial lead package with dimensions of 13.00 mm length, 5.60 mm width, and 9.40 mm height. Lead spacing is 10.00 mm, and the terminations are PC pins with tinned copper-clad steel leads. The part is RoHS3 compliant and REACH unaffected.

This capacitor is designed for general purpose DC applications, including filtering, coupling, timing, and bypass circuits. It is also suitable for high peak current and pulse discharge applications.
