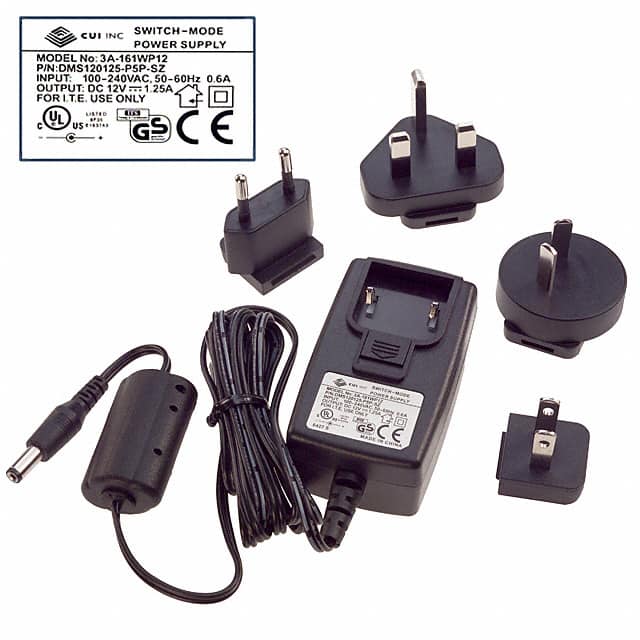

DMS120125-P5P-SZ The CUI Inc. DMS120125-P5P-SZ is a 15W AC/DC wall mount adapter providing a 12VDC output at 1.25A. It accepts a universal 100-240VAC input.
Mfr Part #:

DMS120125-P5P-SZ

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. DMS120125-P5P-SZ is a 15W AC/DC wall mount adapter providing a 12VDC output at 1.25A. It accepts a universal 100-240VAC input.
Stock on Request

DMS120125-P5P-SZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Type
Input Voltage
Length
Mounting Type
Operating Temperature
Output Connector
Output Current
Output Power
Output Voltage
Polarization
Power (Watts)
Region Utilized
Tape & Reel
Voltage
Width
View Similar Products (0)

DMS120125-P5P-SZ Description

Short technical summary and product information.

This CUI Inc. DMS120125-P5P-SZ is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 12VDC output with a maximum current of 1.25A, providing a total power of 15W. The adapter operates with a wide input voltage range of 100 to 240VAC, making it suitable for international use.



The output is delivered through a standard barrel plug connector with dimensions of 2.1mm I.D. x 5.5mm O.D. and a cord length of 72 inches (1.83m). The polarization is positive center. The adapter features a compact wall mount form factor (Class II) with dimensions of 74.0mm x 43.5mm x 34.0mm.



Designed for efficiency, it operates within a temperature range of 0°C to 40°C and has an efficiency rating of 60%. Compliance includes CE, cULus, and TUVgs approval agencies. It is also RoHS3 compliant, REACH unaffected, and has an MSL of 1.

DMS120125-P5P-SZ Quick Information

Product Type: AC/DC Desktop, Wall Adapters
Canonical Name: CUI Inc. DMS120125-P5P-SZ AC/DC Wall Mount Adapter
Subcategory: Wall Mount Adapter

DMS120125-P5P-SZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DMS120125-P5P-SZ Features

  • 12VDC output at 1.25A
  • 15W total output power
  • 100-240VAC universal input
  • 2.1mm x 5.5mm positive center barrel plug
  • Compact wall mount form factor

DMS120125-P5P-SZ Applications

  • Suitable for ITE commercial applications
  • Ideal for international power needs
  • Provides stable 12VDC power source
  • Compact design for easy integration

DMS120125-P5P-SZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage and current for the DMS120125-P5P-SZ?

The DMS120125-P5P-SZ provides a 12VDC output at 1.25A.

What is the total power output of this adapter?

The total power output for the DMS120125-P5P-SZ is 15W.

What is the input voltage range for the DMS120125-P5P-SZ?

The adapter accepts an input voltage range of 100 to 240VAC.

What type of output connector does this adapter use?

It uses a barrel plug connector with dimensions 2.1mm I.D. x 5.5mm O.D. and a length of 9.5mm.

What are the operating temperature limits for this adapter?

The operating temperature range is from 0°C to 40°C.

What is the RoHS status of the DMS120125-P5P-SZ?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL is 1 Unlimited.
