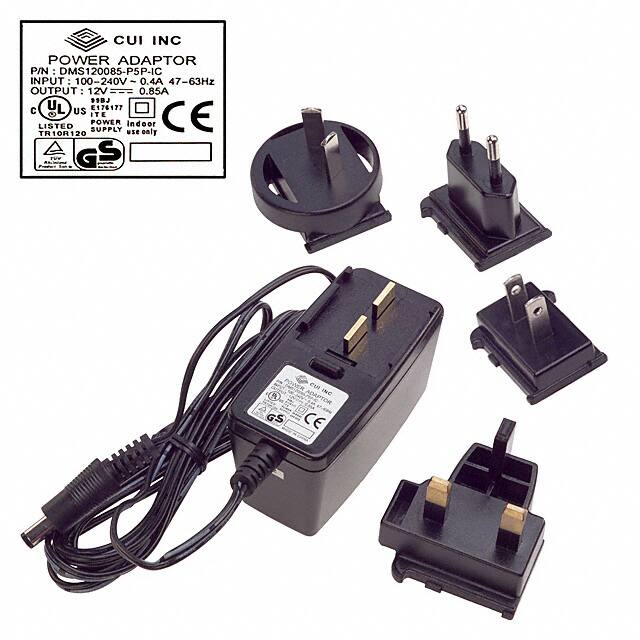

The CUI Inc. DMS120085-P5-IC is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a stable 12V DC output at 0.85A, delivering up to 10W of power.
This adapter operates with a wide input voltage range of 90 V to 264 V ac and a frequency range of 47-63 Hz, making it suitable for international use. It boasts a typical efficiency of 75% and includes short circuit protection with auto restart.
The unit features interchangeable input blades for global compatibility and a cord length of 1.80 meters. The output connector is a standard 2.1mm I.D. x 5.5mm O.D. barrel plug with positive center polarization. Its compact dimensions are 72.0mm x 46.0mm x 35.0mm.
Designed for reliability, the DMS120085-P5-IC operates within a temperature range of 0°C to 40°C and has a storage temperature range of -20°C to +85°C. Safety approvals include CE, cULus, and TUVgs.
The rated input voltage is 100-240 V ac, with an operating range of 90-264 V ac.
The output voltage is 12 Vdc and the output current is 0.85 A.
The power rating is 10 W.
The operating temperature range is 0°C to +40°C.
It is a wall mount (Class II) adapter.
It uses a barrel plug with 2.1mm I.D. x 5.5mm O.D. x 9.5mm, positive center.
Yes, it features output shut down and auto restart protection.
