| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Max Load | |
| Mounting Type | |
| Operating Temperature | |
| Output Connector | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

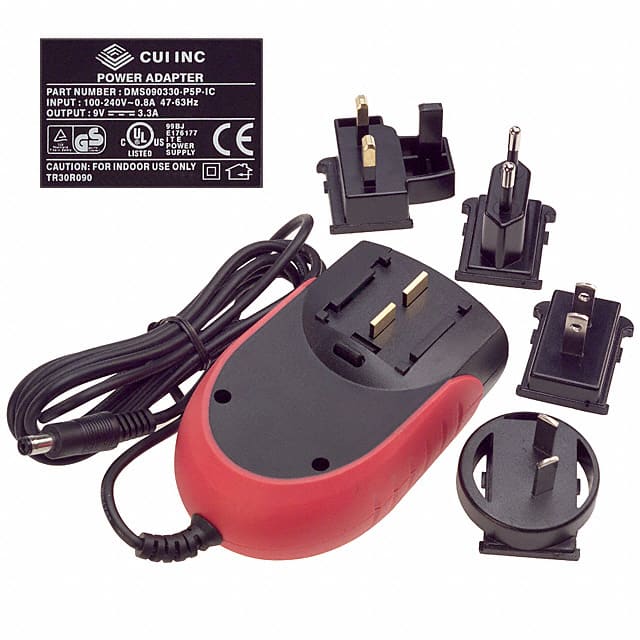

The CUI Inc. DMS090330-P5P-IC is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a stable 9.0V output at a maximum load of 3.3A, delivering a total power of 30W.
This adapter features a universal input voltage range of 90~264VAC and operates at a frequency of 47~63Hz. Key electrical protections include continuous short-circuit protection and over-voltage protection, ensuring reliable operation. The efficiency is typically 75%.
Designed for convenience, it has a multi-blade input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D.). The dimensions are 4.24 inches long, 2.27 inches wide, and 1.32 inches high. The operating temperature range is from 0°C to 40°C.
The input voltage range is 90 to 264 VAC at 47-63 Hz.
Output voltage is 9.0V nominal with a maximum load current of 3.3A.
Dimensions are 4.24 inches long by 2.27 inches wide by 1.32 inches high (107.7mm x 57.7mm x 33.5mm).
Operating temperature range is 0°C to 40°C.
It has a barrel plug with 2.1mm inner diameter, 5.5mm outer diameter, and 9.5mm length. Polarity is positive center.
It meets CISPR/FCC Class B for conductive EMI.
Yes, it has continuous short-circuit protection with auto-recovery.
