| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Ripple | |
| Storage Temperature | |
| Voltage | |
| Width |

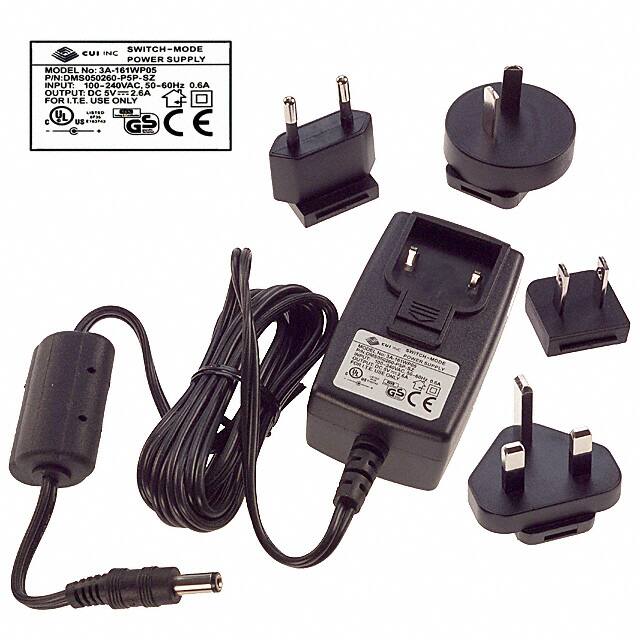

The CUI Inc. DMS050260-P5P-SZ is a versatile 13W AC/DC wall mount power supply designed for ITE (Commercial) applications. It offers a regulated 5V DC output with a maximum current of 2.6A.
Key features include a universal AC input range of 90-255V AC and interchangeable input blades for international use. The adapter provides short circuit and overload protection, ensuring reliable operation. It meets EISA efficiency level IV regulations and has a no-load power consumption of just 0.3W.
This wall mount adapter (Class II) utilizes a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The unit has a compact case size of 74mm x 43.5mm x 34mm and a cord length of 72 inches (1.83m).
Compliance includes CE, UL/cUL, and CB certifications. It operates within a temperature range of 0°C to 40°C and meets FCC Part 15 Class B and CE EMI standards.
The DMS050260-P5P-SZ provides a nominal output voltage of 5V DC with a maximum output current of 2.6A.
This adapter has a maximum power output of 13W.
The adapter accepts a rated input voltage of 100-240V AC and has an input voltage range of 90-255V AC.
The operating temperature range for this power supply is 0°C to 40°C.
Yes, the RoHS Status is listed as RoHS3 Compliant.
