DMP3056LDM-7 P-Channel MOSFET from Diodes Incorporated, rated for 30V drain-source voltage and 4.3A continuous drain current. Features low on-resistance of 45mΩ at 10V gate drive.
Mfr Part #:

DMP3056LDM-7

Available from 3 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
P-Channel MOSFET from Diodes Incorporated, rated for 30V drain-source voltage and 4.3A continuous drain current. Features low on-resistance of 45mΩ at 10V gate drive.
✓ Total Stock: 334,020 pcs
$ Price Range: $0.24 - $0.78

DMP3056LDM-7 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
184,020 pcs
On Request
184020 pcs On Request 1 On Request On Request On Request On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
100,000 pcs
On Request
100000 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
50,000 pcs
On Request
50000 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DMP3056LDM-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Halogen Free
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
SVHC Present
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

DMP3056LDM-7 Description

Short technical summary and product information.

The DMP3056LDM-7 is a P-Channel enhancement mode MOSFET from Diodes Incorporated. It is designed for high efficiency power management applications with low on-state resistance and superior switching performance.



Key electrical specifications include a drain-source voltage rating of 30V, continuous drain current of 4.3A at 25°C, and maximum on-resistance of 45mΩ at 10V gate drive (65mΩ at 4.5V). The gate threshold voltage is 2.1V maximum. The device features a maximum gate charge of 21.1nC at 10V and input capacitance of 948pF at 25V.

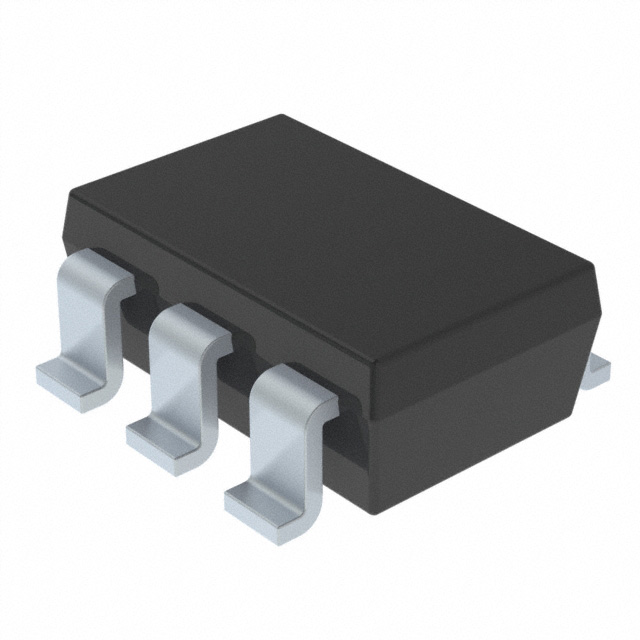

The MOSFET is housed in a surface mount SOT-23-6 package (also known as SOT-26) and is rated for operation from -55°C to 150°C junction temperature. It is RoHS3 compliant and has a moisture sensitivity level of 1 per J-STD-020.

DMP3056LDM-7 Quick Information

Product Type: P-Channel MOSFET
Canonical Name: DMP3056LDM-7 P-Channel MOSFET 30V 4.3A SOT-26
Subcategory: P-Channel MOSFET

DMP3056LDM-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

DMP3056LDM-7 Estimated Pricing

Qty Low High
1+ $0.78 $0.78
10+ $0.49 $0.49
100+ $0.31 $0.31
500+ $0.24 $0.24
3,000+ $0.24 $0.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

DMP3056LDM-7 Features

  • P-Channel enhancement mode MOSFET.
  • 30V drain-source voltage rating.
  • 4.3A continuous drain current.
  • Low on-resistance of 45mΩ.
  • Surface mount SOT-26 package.

DMP3056LDM-7 Applications

  • General purpose interfacing switches.
  • Power management functions.
  • Analog switches.

DMP3056LDM-7 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating?

30V.

What is the package type?

SOT-23-6 (also known as SOT-26).

What is the operating temperature range?

-55°C to 150°C (junction).

Is this component RoHS compliant?

Yes, RoHS3 compliant.

What is the maximum gate charge?

21.1 nC at 10V.

What is the input capacitance?

948 pF at 25V.
