DMP3021SFVWQ-7 30V P-Channel MOSFET from Diodes Incorporated. Features 42A continuous drain current and 15mΩ on-resistance at VGS=-10V.
Mfr Part #:

DMP3021SFVWQ-7

Available from 2 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
30V P-Channel MOSFET from Diodes Incorporated. Features 42A continuous drain current and 15mΩ on-resistance at VGS=-10V.
✓ Total Stock: 321,020 pcs
$ Price Range: $0.29 - $1.27

DMP3021SFVWQ-7 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
239,020 pcs
On Request
239020 pcs On Request 1 On Request On Request On Request On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
82,000 pcs
On Request
82000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DMP3021SFVWQ-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Halogen Free
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
SVHC Present
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

DMP3021SFVWQ-7 Description

Short technical summary and product information.

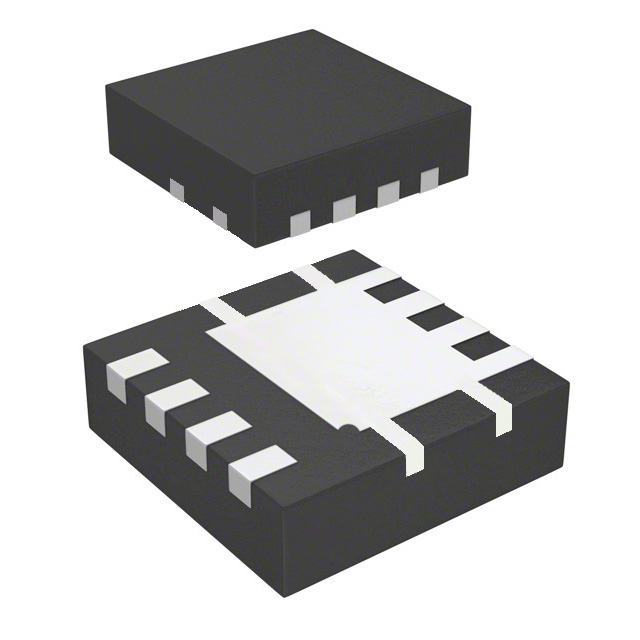

The DMP3021SFVWQ-7 is a 30V P-Channel enhancement mode MOSFET from Diodes Incorporated, designed for automotive applications. It is qualified to AEC-Q101 and manufactured in IATF 16949 certified facilities. The device offers low on-resistance of 15mΩ at VGS=-10V and 25mΩ at VGS=-5V, minimizing conduction losses. It supports continuous drain current up to 42A at Tc=25°C with VGS=-10V, and 32A at VGS=-5V. The gate threshold voltage is 2.5V maximum at ID=250µA. Input capacitance is 1799pF and gate charge is 34nC. The MOSFET is housed in a PowerDI3333-8 surface mount package, which is thermally efficient and occupies only 33% of the board area of an SO-8 package. It is fully RoHS compliant, halogen and antimony free, and has a moisture sensitivity level of 1. Typical applications include backlighting, power management functions, and DC-DC converters.

DMP3021SFVWQ-7 Quick Information

Product Type: P-Channel MOSFET
Canonical Name: DMP3021SFVWQ-7 - 30V P-Channel MOSFET, PowerDI3333-8
Subcategory: P-Channel MOSFET

DMP3021SFVWQ-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Lead-Free

DMP3021SFVWQ-7 Estimated Pricing

Qty Low High
1+ $1.27 $1.27
10+ $0.80 $0.80
100+ $0.53 $0.53
500+ $0.41 $0.41
1,000+ $0.37 $0.37
2,000+ $0.34 $0.34
4,000+ $0.30 $0.30
10,000+ $0.29 $0.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

DMP3021SFVWQ-7 Features

  • Low on-resistance of 15mΩ at 10V.
  • High continuous drain current of 42A.
  • Automotive qualified to AEC-Q101 standard.
  • Surface mount PowerDI3333-8 package.
  • RoHS compliant and halogen free.

DMP3021SFVWQ-7 Applications

  • Used in automotive backlighting circuits.
  • Ideal for DC-DC converter designs.
  • Suitable for power management functions.
  • Designed for high-density power applications.

DMP3021SFVWQ-7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage?

30V.

What package is the DMP3021SFVWQ-7 available in?

PowerDI3333-8 surface mount package.

What is the operating temperature range?

-55°C to 150°C junction temperature.

Is the DMP3021SFVWQ-7 RoHS compliant?

Yes, it is fully RoHS3 compliant.

What is the on-resistance at VGS=-10V?

15mΩ maximum at ID=8A.

What is the gate threshold voltage?

2.5V maximum at ID=250µA.

What is the continuous drain current at case temperature 25°C?

42A at VGS=-10V.
