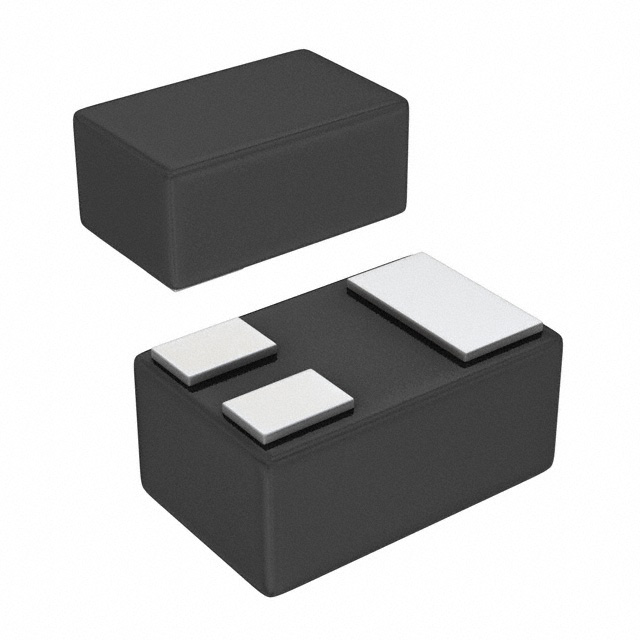

DMP2088LCP3-7 P-Channel enhancement mode MOSFET with -20V drain-source voltage and 2.9A continuous drain current. Designed for low profile surface mount applications in X2-DSN1006-3 package.
Mfr Part #:

DMP2088LCP3-7

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
P-Channel enhancement mode MOSFET with -20V drain-source voltage and 2.9A continuous drain current. Designed for low profile surface mount applications in X2-DSN1006-3 package.
✓ Total Stock: 18,000 pcs

DMP2088LCP3-7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
18,000 pcs
On Request
18000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DMP2088LCP3-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Halogen Free
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

DMP2088LCP3-7 Description

Short technical summary and product information.

The DMP2088LCP3-7 is a P-Channel enhancement mode MOSFET from Diodes Incorporated, featuring a maximum drain-source voltage of -20V and a continuous drain current of -2.9A at VGS = -8V and 25°C. It offers low on-resistance of 88mOhm at 8V drive and 105mOhm at 4.5V drive, making it suitable for efficient switching in battery-powered devices. The gate threshold voltage is 1.2V maximum at 250µA, and the device has a low gate charge of 1.5nC and input capacitance of 160pF, enabling fast switching with minimal drive losses.



This MOSFET is designed for space-constrained handheld and mobile applications, featuring an ultra-small X2-DSN1006-3 surface mount package with a low profile of 0.30mm height. It is totally lead-free, halogen and antimony free, and fully RoHS3 compliant. The device is rated for operating junction temperatures from -55°C to 150°C and has an ESD rating of 4kV HBM.



Typical applications include battery management, load switching, battery protection, and other portable electronics. The part is now obsolete per the manufacturer datasheet; the recommended replacement is DMP2078LCA3.

DMP2088LCP3-7 Quick Information

Product Type: P-Channel MOSFET
Canonical Name: DMP2088LCP3-7 P-Channel MOSFET
Subcategory: P-Channel MOSFET

DMP2088LCP3-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

DMP2088LCP3-7 Features

  • Low on-resistance of 88mOhm at 8V drive.
  • Ultra-small X2-DSN1006-3 package footprint.
  • Low gate charge for efficient switching.
  • ESD rated to 4kV HBM.
  • Totally lead-free and RoHS compliant.

DMP2088LCP3-7 Applications

  • Used in battery management systems.
  • Ideal for load switch applications.
  • Suitable for handheld and mobile devices.
  • Battery protection circuits.

DMP2088LCP3-7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating?

Maximum drain-source voltage is -20V.

What is the package type?

Surface mount X2-DSN1006-3 package.

What is the operating temperature range?

-55°C to 150°C junction temperature.

Is the part RoHS compliant?

Yes, fully RoHS3 compliant.

What is the continuous drain current?

2.9A at VGS=-8V and 25°C.

What is the Rds(on) at 8V drive?

88mOhm at VGS=-8V and 500mA.

What is the gate threshold voltage?

Maximum 1.2V at 250µA.
