| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
154,000 pcs
|
154000 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
71,020 pcs
|
71020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id | |
| Weight |
The DMP2078LCA3-7 is a P-Channel enhancement mode MOSFET designed for space-constrained handheld and mobile applications. It offers a drain-source voltage rating of -20V and a continuous drain current of -3.4A at VGS=-8V and 25°C. The device features a low typical on-resistance of 78mΩ at VGS=-8V and 100mΩ at VGS=-4.5V, enabling efficient power management. With a gate threshold voltage of 1.2V max, it can be driven by low-voltage logic. The MOSFET is housed in a tiny X4-DSN1006-3 package (3-XFDFN) with a profile of only 0.20mm height and weight of 0.00029 grams, making it ideal for ultra-thin designs. It is fully RoHS compliant and halogen-free. Typical applications include battery management, load switching, battery protection, and other handheld/mobile devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
| 10+ | $0.31 | $0.31 |
| 100+ | $0.19 | $0.19 |
| 500+ | $0.15 | $0.15 |
| 1,000+ | $0.12 | $0.12 |
| 10,000+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.

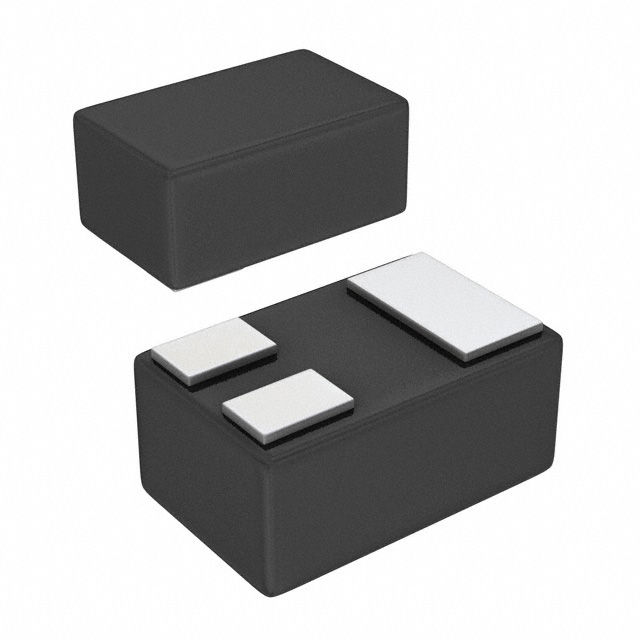

The DMP2078LCA3-7 is housed in an X4-DSN1006-3 (3-XFDFN) package.
The operating junction temperature range is -55°C to 150°C.
Yes, it is RoHS3 compliant and lead-free.
The maximum drain-source voltage is -20V.
The maximum on-resistance is 78mΩ at VGS=-8V and Id=500mA.
The maximum gate threshold voltage is 1.2V at Id=250µA.
The maximum continuous drain current is -3.4A at VGS=-8V and Ta=25°C.
