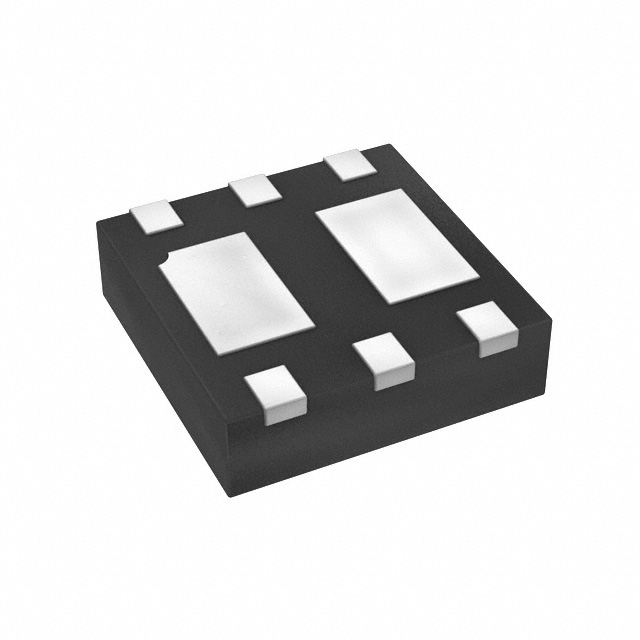

DMP2075UFDB-13 The Diodes Incorporated DMP2075UFDB-13 is a P-Channel MOSFET designed for various electronic applications. It features a 20V drain-source voltage and a surface mount package.
Mfr Part #:

DMP2075UFDB-13

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated DMP2075UFDB-13 is a P-Channel MOSFET designed for various electronic applications. It features a 20V drain-source voltage and a surface mount package.
✓ Total Stock: 11,020 pcs
$ Price Range: $0.10

DMP2075UFDB-13 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
11,020 pcs
On Request
11020 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DMP2075UFDB-13 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Configuration
Gate Charge
Industrial Grade
Input Capacitance
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Power Dissipation
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
View Similar Products (0)

DMP2075UFDB-13 Description

Short technical summary and product information.

The Diodes Incorporated DMP2075UFDB-13 is a P-Channel MOSFET with a drain-source voltage (Vds) of 20V. It offers a continuous drain current (Id) of 3.8A at 25°C and a maximum on-resistance (Rds(on)) of 75mOhm at 2.9A and 4.5V Vgs.



This MOSFET has a gate threshold voltage (Vgs(th)) of 1.4V maximum at 250µA and an input capacitance (Ciss) of 642pF maximum at 10V. The gate charge (Qg) is 8.8nC maximum at 4.5V Vgs. It is designed for surface mounting and comes in a U-DFN2020-6 package.



The operating temperature range for this device is -55°C to 150°C. It has a maximum power dissipation of 700mW at 25°C ambient temperature. The DMP2075UFDB-13 is a dual P-Channel MOSFET configuration.

DMP2075UFDB-13 Quick Information

Product Type: MOSFET
Canonical Name: Diodes Incorporated DMP2075UFDB-13 P-Channel MOSFET
Subcategory: P-Channel

DMP2075UFDB-13 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DMP2075UFDB-13 Estimated Pricing

Qty Low High
1+ $0.10 $0.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

DMP2075UFDB-13 Features

  • P-Channel MOSFET with 20V drain-source voltage.
  • Continuous drain current of 3.8A at 25°C.
  • Low on-resistance of 75mOhm at 2.9A, 4.5V.
  • Surface mount U-DFN2020-6 package.
  • Wide operating temperature range of -55°C to 150°C.

DMP2075UFDB-13 Applications

  • Suitable for power switching applications.
  • Ideal for battery management circuits.
  • Used in load switch designs.
  • Applicable in low-voltage DC-DC converters.

DMP2075UFDB-13 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage for the DMP2075UFDB-13?

The maximum drain-source voltage (Vds) for the DMP2075UFDB-13 is 20V.

What is the continuous drain current at 25°C?

The continuous drain current (Id) at 25°C is 3.8A.

What is the typical on-resistance of the DMP2075UFDB-13?

The maximum on-resistance (Rds(on)) is 75mOhm when measured at 2.9A drain current and 4.5V gate-source voltage.

What is the operating temperature range for this MOSFET?

The operating temperature range for the DMP2075UFDB-13 is -55°C to 150°C.

What package type is the DMP2075UFDB-13 supplied in?

The DMP2075UFDB-13 is supplied in a U-DFN2020-6 package suitable for surface mounting.
