| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
159 pcs
|
159 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id | |
| Weight |

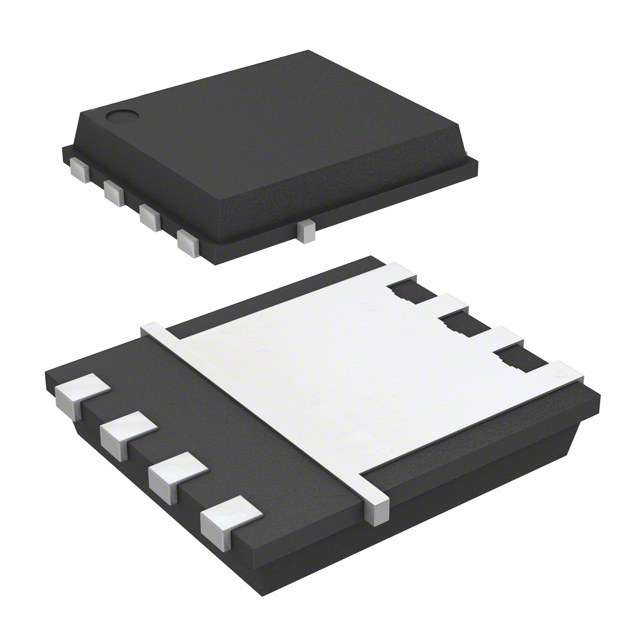

The DMP2002UPS-13 is a P-Channel Enhancement Mode MOSFET designed to minimize on-resistance while maintaining superior switching performance. It is housed in a thermally efficient PowerDI5060-8 (Type K) surface-mount package with a low 1.1mm profile, making it suitable for thin applications.
Key electrical specifications include a maximum drain-source voltage of -20V, continuous drain current of -60A at Tc=+25°C, and an ultra-low on-resistance of 1.9mΩ at VGS=-10V. The device also offers low on-resistance of 2.4mΩ at VGS=-4.5V and 3.8mΩ at VGS=-2.5V, enabling efficient operation at lower gate voltages. Gate charge is 585nC at VGS=10V, and input capacitance is 12826pF at VDS=10V.
The MOSFET is qualified to AEC-Q101 standards for high reliability and is suitable for notebook battery power management and load switch applications. It is RoHS3 compliant, halogen- and antimony-free, and has a moisture sensitivity level of 1 per J-STD-020.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.50 | $3.50 |
| 10+ | $2.27 | $2.27 |
| 25+ | $1.94 | $1.94 |
| 50+ | $1.74 | $1.74 |
| 100+ | $1.57 | $1.57 |
| 2,500+ | $1.07 | $1.07 |
| 7,500+ | $0.97 | $0.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is -20V.
The continuous drain current is -60A at Tc=+25°C with VGS=-10V.
The maximum on-resistance is 1.9mΩ at VGS=-10V and ID=25A.
It is available in a PowerDI5060-8 (Type K) surface-mount package.
The operating junction temperature range is -55°C to +150°C.
Yes, it is RoHS3 compliant per EU Directive 2002/95/EC and 2011/65/EU.
