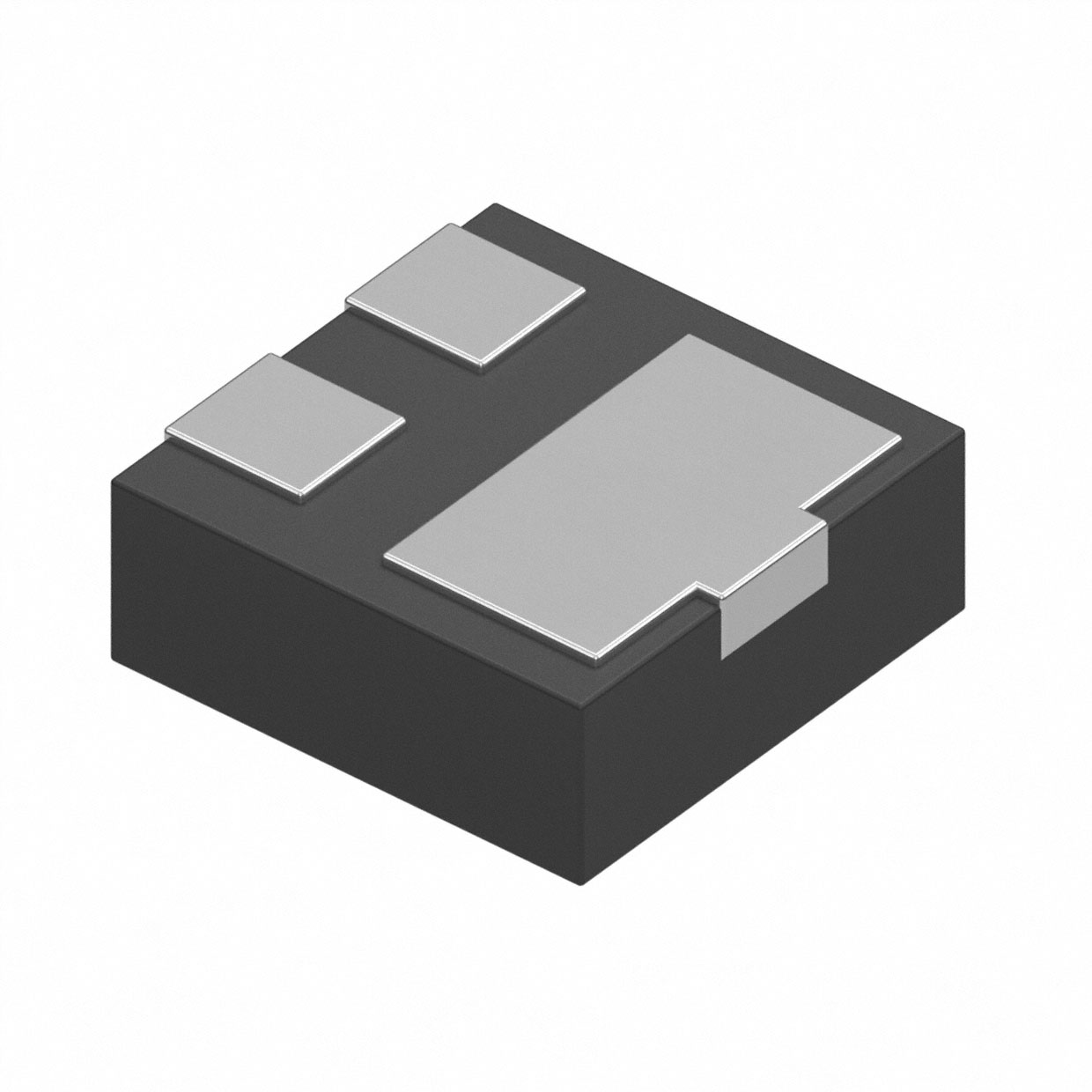

The DMP1200UFR4-7 is a P-Channel enhancement mode MOSFET designed for high efficiency power management applications. It features a drain-source breakdown voltage of -12V and a continuous drain current of -2A at ambient temperature. The device offers very low on-resistance of 100mΩ at VGS = -4.5V and 2A, ensuring minimal conduction losses.
This MOSFET is optimized for low gate drive voltages, with RDS(on) values specified down to 1.5V gate drive, making it suitable for battery-powered and low-voltage logic level switching. It features input capacitance of 514pF and total gate charge of 5.8nC, enabling fast switching performance.
The device is housed in a compact X2-DFN1010-3 surface mount package (3-pin, 1.0mm x 1.0mm) with NiPdAu plated terminals and a green molding compound. It is rated for an operating junction temperature range of -55°C to +150°C and maximum power dissipation of 480mW (ambient).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.63 | $0.63 |
| 10+ | $0.39 | $0.39 |
| 25+ | $0.32 | $0.32 |
| 50+ | $0.28 | $0.28 |
| 100+ | $0.25 | $0.25 |
| 3,000+ | $0.14 | $0.14 |
| 9,000+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source breakdown voltage is -12V.
Maximum continuous drain current is 2A at 25°C ambient.
100 mOhm maximum at Vgs = -4.5V and Id = -2A.
It is supplied in a X2-DFN1010-3 surface mount package.
Yes, it is RoHS3 compliant and lead-free.
The operating junction temperature range is -55°C to +150°C.
