The DMP1100UCB4-7 is a P-Channel enhancement mode MOSFET from Diodes Incorporated. It features a maximum drain-source voltage of -12V and a continuous drain current rating of -2.5A at 25°C ambient temperature. The typical on-resistance is 65mΩ at Vgs = -4.5V, with a maximum of 83mΩ under specified conditions. Total gate charge is 9nC typical, enabling efficient switching in power management applications.

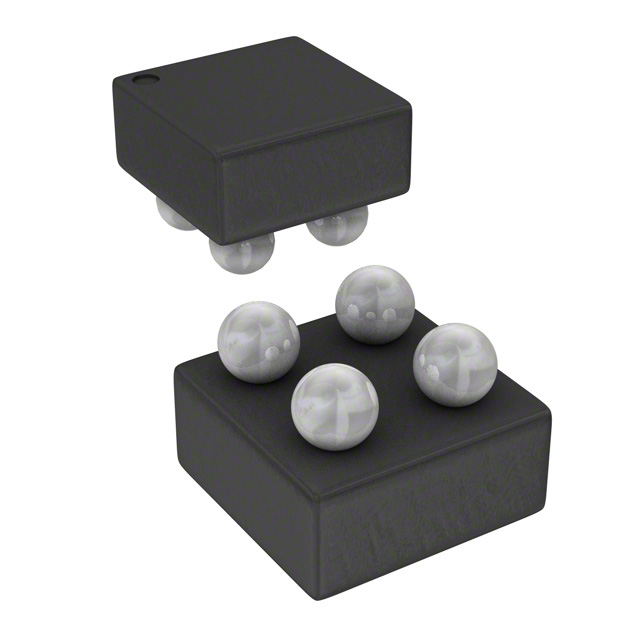

The device is housed in an ultra-small X2-WLB0808-4 (0.8mm x 0.8mm) surface mount package with a UBM opening of 203µm. It is rated for operation from -55°C to +150°C junction temperature. Thermal resistance from junction to ambient is 187°C/W (Note 5) and 117°C/W (Note 6). Maximum power dissipation is 670mW at 25°C ambient.
This MOSFET is fully RoHS3 compliant, lead-free, and halogen-free (green). It is qualified to AEC-Q101 standards for high reliability. The built-in gate-source protection diode provides ESD withstand capability of 2kV HBM. Typical applications include portable device power management, load switching, and general power distribution functions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.88 | $0.88 |
| 10+ | $0.54 | $0.54 |
| 25+ | $0.45 | $0.45 |
| 50+ | $0.40 | $0.40 |
| 100+ | $0.35 | $0.35 |
| 3,000+ | $0.21 | $0.21 |
| 9,000+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is -12V.
The continuous drain current is -2.5A at TA=25°C. Under specific test conditions (VGS=-4.5V, TA=25°C) it is -3.2A.
The typical on-resistance is 65mΩ at Vgs=-4.5V and TA=25°C. The maximum is 83mΩ at Vgs=4.5V and ID=3A.
The operating junction temperature range is -55°C to +150°C.
It is available in a 4-pin X2-WLB0808-4 surface mount package. The supplier device package is X2-WLB0808-4.
Yes, it is RoHS3 compliant, lead-free, and halogen-free (green).
The typical total gate charge is 9nC at Vgs=-4.5V. The maximum is 14nC at Vgs=4.5V.
