| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Finish | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id | |
| Weight |

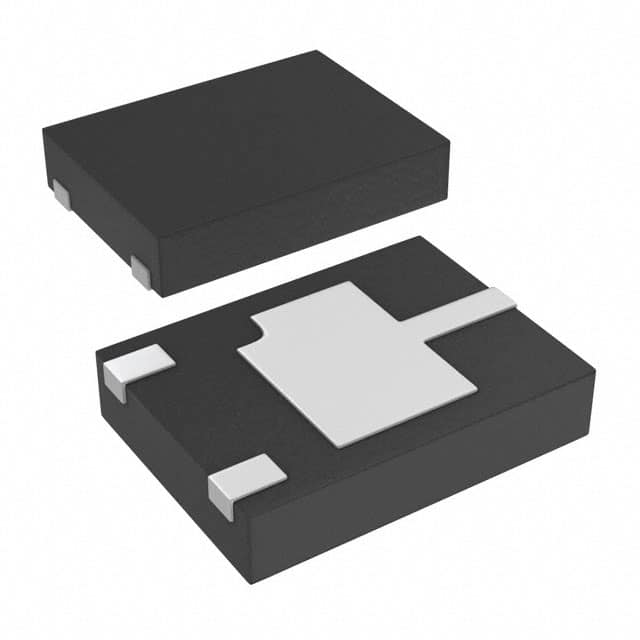

The DMP1045UFY4-7 is a P-Channel enhancement mode MOSFET from Diodes Incorporated, designed for low on-resistance and efficient power management. It features a maximum drain-source voltage of -12V and a continuous drain current of -5.5A at 25°C (VGS = -4.5V). The on-resistance is as low as 32mΩ at VGS = -4.5V, making it suitable for high-efficiency DC-DC converters and power management functions.
This MOSFET is ESD protected up to 3kV and is qualified to AEC-Q101 standards for automotive reliability. It operates over a junction temperature range of -55°C to 150°C, with a maximum power dissipation of 0.7W at 25°C ambient. The device is housed in a compact X2-DFN2015-3 surface mount package (supplier package DFN2015H4-3), with a weight of approximately 0.008 grams.
Environmental compliance includes RoHS3 compliance, lead-free construction, and halogen-free green molding compound. The device is also MSL Level 1 per J-STD-020 and has a flammability rating of UL 94V-0. Typical applications include DC-DC converters, power management, and analog switch circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
| 10+ | $0.46 | $0.46 |
| 25+ | $0.38 | $0.38 |
| 50+ | $0.34 | $0.34 |
| 100+ | $0.29 | $0.29 |
| 3,000+ | $0.16 | $0.16 |
| 9,000+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Maximum drain-source voltage is -12V.
X2-DFN2015-3 (supplier device package DFN2015H4-3), surface mount.
-55°C to 150°C (junction).
Yes, RoHS3 compliant and lead-free.
-5.5A at VGS=-4.5V, steady state.
32mΩ at VGS=-4.5V, ID=-5.5A.
Yes, AEC-Q101 qualified.
