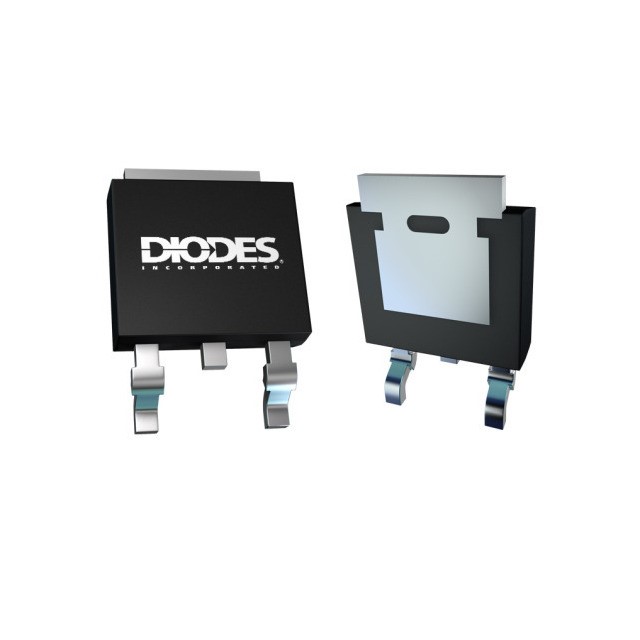

DMN6068LK3Q-13 The DMN6068LK3Q-13 is a 60V N-Channel Enhancement Mode MOSFET from Diodes Incorporated. It features low on-resistance of 68 mΩ at 10V and is suitable for automotive applications.
Mfr Part #:

DMN6068LK3Q-13

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The DMN6068LK3Q-13 is a 60V N-Channel Enhancement Mode MOSFET from Diodes Incorporated. It features low on-resistance of 68 mΩ at 10V and is suitable for automotive applications.
✓ Total Stock: 8,520 pcs

DMN6068LK3Q-13 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
8,520 pcs
On Request
8520 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DMN6068LK3Q-13 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Halogen Free
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Rds On (Max) @ Id, Vgs
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

DMN6068LK3Q-13 Description

Short technical summary and product information.

The DMN6068LK3Q-13 is a 60V N-Channel Enhancement Mode MOSFET from Diodes Incorporated, designed for automotive and industrial applications. It offers a continuous drain current of 8.5A at 25°C and a low on-resistance of 68 mΩ at VGS=10V, ensuring efficient power handling. The device is AEC-Q101 qualified and supports PPAP, making it suitable for stringent automotive requirements.



Key electrical characteristics include a maximum gate threshold voltage of 3V, total gate charge of 10.3 nC, and input capacitance of 502 pF. The MOSFET is capable of handling pulsed drain currents up to 22.2A and single pulsed avalanche energy of 37.5 mJ, providing robustness in switching applications.



The component is packaged in a TO252 (DPAK) surface-mount package with a tape and reel carrier, standard quantity 2500 pieces. It features a lead-free matte tin finish and is RoHS3 compliant, halogen and antimony free. The operating junction temperature range is -55°C to 150°C, with a moisture sensitivity level of 1 per J-STD-020.



Typical applications include motor controls, DC-DC converters, power management functions, transformer driving switches, and uninterruptible power supplies. The fast switching speed and low on-resistance make it well-suited for high-efficiency designs.

DMN6068LK3Q-13 Quick Information

Product Type: N-Channel MOSFET
Series: DMN
Canonical Name: DMN6068LK3Q-13 - 60V N-Channel Enhancement Mode MOSFET
Subcategory: Single MOSFET

DMN6068LK3Q-13 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 - Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Finish

DMN6068LK3Q-13 Features

  • Low on-resistance of 68 mΩ at 10V.
  • Qualified to AEC-Q101 automotive standard.
  • Fast switching with low gate charge.
  • Surface mount TO252 package.
  • Halogen and antimony free.

DMN6068LK3Q-13 Applications

  • Used in DC-DC converter circuits.
  • Ideal for motor control applications.
  • Suitable for power management functions.
  • Applicable in transformer driving switches.
  • Used in uninterruptible power supplies.

DMN6068LK3Q-13 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating?

60V.

What package is the DMN6068LK3Q-13 available in?

TO252 (DPAK) surface mount package.

What is the operating temperature range?

-55°C to 150°C (junction).

Is the DMN6068LK3Q-13 RoHS compliant?

Yes, it is RoHS3 compliant with lead-free finish.

What is the continuous drain current at 25°C?

8.5A.

What is the on-resistance?

68 mΩ at VGS=10V, ID=8.5A.

Is this component automotive qualified?

Yes, it is AEC-Q101 qualified and PPAP capable.
