| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
169,020 pcs
|
169020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| ESD Protection | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id | |
| Weight |
The DMN3070SSN-7 is a 30V N-Channel enhancement mode MOSFET designed for high efficiency power management applications. It features a low on-resistance of 40mΩ at VGS = 10V and 50mΩ at VGS = 4.5V, enabling efficient switching and reduced conduction losses.
This MOSFET supports a continuous drain current of 4.2A at 25°C (steady state) and up to 5.1A for short durations (t<10s). The device is ESD protected with a 2kV gate rating and offers a gate threshold voltage of 2.1V maximum at 250µA drain current.

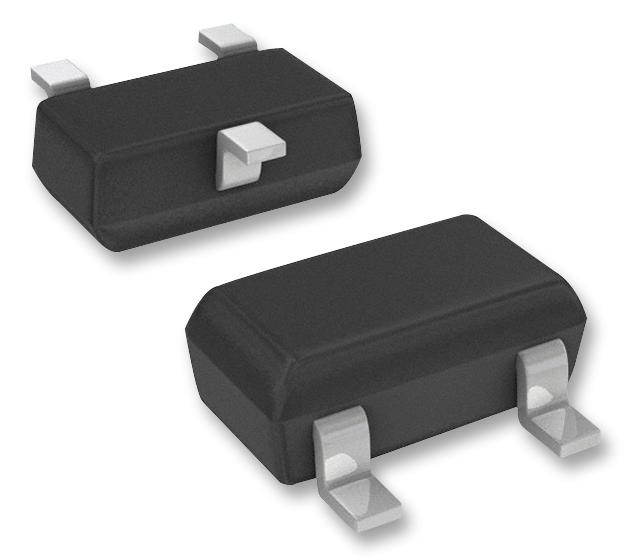

The DMN3070SSN-7 is housed in a surface-mount SC59 package (also known as TO-236-3 or SOT-23-3) with matte tin solderable terminals. It is qualified to AEC-Q101 standards for high reliability and is fully RoHS compliant, lead-free, and halogen-free.
The maximum drain-source voltage (Vdss) is 30V.
The continuous drain current is 4.2A at TA = 25°C with VGS = 10V (steady state).
The maximum on-resistance is 40mΩ at VGS = 10V and ID = 4.2A, and 50mΩ at VGS = 4.5V.
The device is available in a surface-mount SC59 package (also known as TO-236-3 or SOT-23-3).
The operating junction temperature range is -55°C to +150°C.
Yes, it is fully RoHS3 compliant and totally lead-free.
Yes, it is qualified to AEC-Q101 standards for high reliability.
