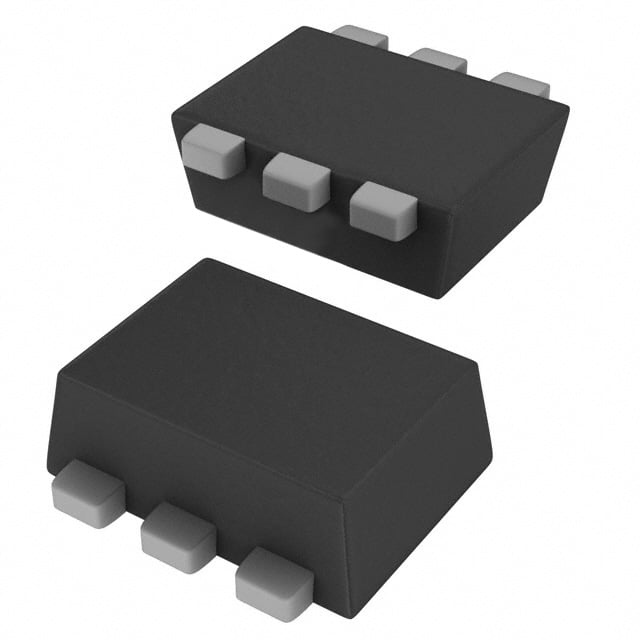

DMN2990UDJ-7 Dual N-channel enhancement mode MOSFET with 20V drain-source voltage and 450mA continuous drain current in an ultra-small SOT-963 package.
Mfr Part #:

DMN2990UDJ-7

Available from 2 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
Dual N-channel enhancement mode MOSFET with 20V drain-source voltage and 450mA continuous drain current in an ultra-small SOT-963 package.
✓ Total Stock: 1,819,484 pcs

DMN2990UDJ-7 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
1,811,020 pcs
On Request
1811020 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
8,464 pcs
On Request
8464 pcs On Request 1 On Request On Request 18+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DMN2990UDJ-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Drain to Source Voltage (Vdss)
ESD Protection
FET Feature
Gate Charge (Qg) (Max) @ Vgs
Halogen Free
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs(th) (Max) @ Id
Weight
View Similar Products (0)

DMN2990UDJ-7 Description

Short technical summary and product information.

The DMN2990UDJ-7 from Diodes Incorporated is a dual N-channel enhancement mode MOSFET designed for low on-state resistance and fast switching.



With a maximum drain-source voltage of 20V and continuous drain current rating of 450mA (at VGS = 4.5V), this device is suitable for power management and general-purpose switching applications. It features a logic-level gate with a gate threshold voltage of 1V maximum, making it compatible with low-voltage control signals.



The MOSFET offers low on-resistance: 990mOhm at VGS = 4.5V, 1.2Ω at VGS = 2.5V, 1.8Ω at VGS = 1.8V, and 2.4Ω at VGS = 1.5V. Input capacitance is only 27.6pF at VDS = 16V, and gate charge is 0.5nC at VGS = 4.5V, enabling high-speed switching.



Housed in an ultra-small SOT-963 surface-mount package with a maximum height of 0.45mm, the device is ESD protected and qualified to AEC-Q101 standards for high reliability. Operating temperature range is -55°C to 150°C.

DMN2990UDJ-7 Quick Information

Product Type: MOSFET Array
Canonical Name: DMN2990UDJ-7 Dual N-Channel Enhancement Mode MOSFET
Subcategory: Dual N-Channel Enhancement Mode

DMN2990UDJ-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Totally Lead-Free

DMN2990UDJ-7 Features

  • 450mA continuous drain current rating.
  • Low on-resistance of 990mOhm at 4.5V.
  • Logic-level gate with 1V max threshold.
  • Ultra-small SOT-963 package with 0.45mm height.
  • AEC-Q101 qualified for automotive reliability.

DMN2990UDJ-7 Applications

  • General purpose interfacing switching applications.
  • Power management in portable electronics.
  • DC-DC converter and analog switch circuits.
  • High-efficiency low-voltage load switching.

DMN2990UDJ-7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the DMN2990UDJ-7?

The maximum drain-source voltage (Vdss) is 20V.

What is the continuous drain current rating?

450mA at TA = 25°C with VGS = 4.5V, steady state.

What package does the DMN2990UDJ-7 come in?

It comes in a SOT-963 surface mount package.

What is the operating temperature range?

The operating temperature range is -55°C to 150°C (junction).

Is the DMN2990UDJ-7 RoHS compliant?

Yes, it is fully RoHS3 compliant and totally lead-free.

What is the typical on-resistance at VGS = 4.5V?

Maximum 990mOhm at Id = 100mA, VGS = 4.5V.

Does the DMN2990UDJ-7 have ESD protection?

Yes, the gate is ESD protected.
