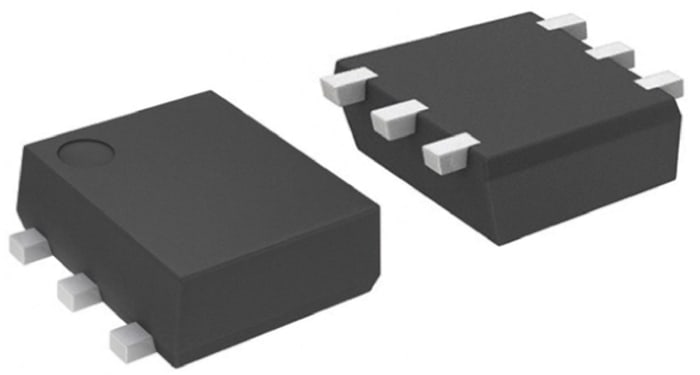

DMN26D0UDJ-7 Dual N-channel MOSFET with 20V drain-source voltage and 240mA continuous drain current. Features logic level gate and low on-resistance of 3 Ohm at 4.5V.
Mfr Part #:

DMN26D0UDJ-7

Available from 4 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
Dual N-channel MOSFET with 20V drain-source voltage and 240mA continuous drain current. Features logic level gate and low on-resistance of 3 Ohm at 4.5V.
✓ Total Stock: 104,010 pcs

DMN26D0UDJ-7 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DMN26D0UDJ-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Configuration
Current
Drain to Source Voltage (Vdss)
FET Feature
Industrial Grade
Input Capacitance (Ciss) (Max) @ Vds
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Power
Rds On (Max) @ Id, Vgs
SVHC Present
Supplier Device Package
Technology
Vgs(th) (Max) @ Id
View Similar Products (0)

DMN26D0UDJ-7 Description

Short technical summary and product information.

The DMN26D0UDJ-7 is a dual N-channel MOSFET from Diodes Incorporated, designed for surface mount applications. It features two independent N-channel MOSFETs in a single SOT-963 package, offering space-saving benefits.



Key electrical specifications include a drain-source voltage (Vdss) of 20V, continuous drain current of 240mA, and maximum power dissipation of 300mW. The device has a logic level gate with a maximum threshold voltage of 1.05V at 250µA, enabling direct drive from low-voltage logic. On-resistance is typically 3 Ohm at 100mA and 4.5V gate drive.



The MOSFET operates over a junction temperature range of -55°C to 150°C. Input capacitance is 14.1pF at 15V, suitable for high-frequency switching applications. The SOT-963 package is compact and suitable for dense PCB layouts.



This component is RoHS3 compliant and has an MSL of 1 (unlimited). It is suitable for load switching, signal switching, and power management in portable and battery-powered devices.

DMN26D0UDJ-7 Quick Information

Product Type: MOSFET Array
Canonical Name: Dual N-Channel MOSFET, 20V, 240mA, SOT-963
Subcategory: Arrays

DMN26D0UDJ-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DMN26D0UDJ-7 Features

  • Dual N-channel MOSFET in SOT-963 package.
  • 20V drain-source voltage rating.
  • 240mA continuous drain current.
  • Logic level gate for low-voltage drive.
  • Low on-resistance of 3 Ohm at 4.5V.

DMN26D0UDJ-7 Applications

  • Load switching in portable electronics.
  • Signal switching in low-power circuits.
  • Power management in battery-powered devices.
  • High-frequency switching due to low capacitance.

DMN26D0UDJ-7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating?

20V.

What is the package type?

SOT-963.

What is the operating temperature range?

-55°C to 150°C (junction).

Is the component RoHS compliant?

Yes, RoHS3 compliant (unverified).

What is the continuous drain current?

240mA.

What is the gate threshold voltage?

Maximum 1.05V at 250µA.

What is the on-resistance?

Maximum 3 Ohm at 100mA and 4.5V.
