The DMN2004WKQ-7 is an N-Channel enhancement mode MOSFET from Diodes Incorporated, designed for automotive applications. It is qualified to AEC-Q101 standards and supports PPAP requirements.
Key electrical specifications include a maximum drain-source voltage of 20V, a maximum gate-source voltage of ±8V, and a continuous drain current of 540mA at 25°C. The drain-source on-resistance is 550mOhm maximum at Vgs=4.5V and Id=540mA. The gate threshold voltage is 1V maximum at Id=250µA. Input capacitance is 150pF at Vds=16V.

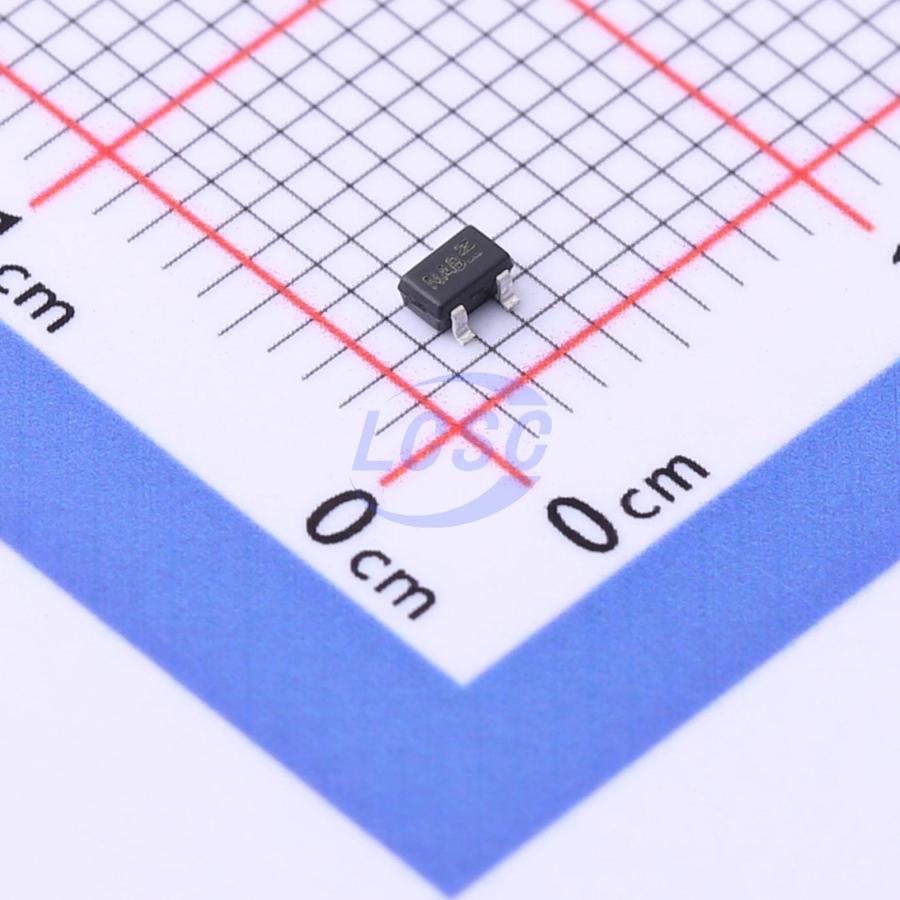

The device is housed in a SOT-323 surface mount package with molded plastic case material (UL 94V-0). It weighs approximately 0.006 grams and has matte tin annealed terminals over an Alloy 42 leadframe. The operating junction temperature range is -55°C to 150°C, with a maximum power dissipation of 200mW at 25°C.
This MOSFET is fully RoHS compliant, lead-free, and halogen and antimony free (green). Moisture sensitivity level is 1 (unlimited). Typical applications include engine management systems, DC-DC converters, and body control electronics.
20 V
SOT-323 (SC-70)
-55°C to 150°C (junction)
Yes, RoHS compliant.
540 mA at 25°C ambient.
1 V maximum at Id=250 µA.
Yes, it is AEC-Q101 qualified and PPAP capable.
