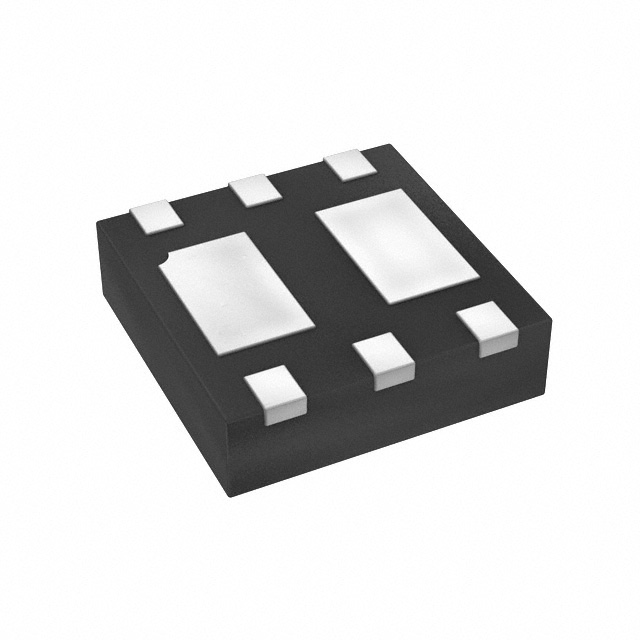

The DMN1029UFDB-7 is a dual N-Channel enhancement mode MOSFET from Diodes Incorporated. It is designed for high-efficiency power management applications, offering a maximum drain-source voltage of 12V and a continuous drain current of 5.6A at 25°C. The on-resistance is exceptionally low, with typical values of 29mΩ at Vgs=4.5V (Id=5A), 34mΩ at 2.5V, 44mΩ at 1.8V, and 65mΩ at 1.5V, enabling efficient operation at low gate voltages. This makes it ideal for load switching and battery-powered devices.
The device is housed in a compact 6-pin U-DFN2020-6 (Type B) surface mount package with an exposed pad for enhanced thermal dissipation. The package has a maximum height of just 0.6mm, suitable for space-constrained designs. The MOSFET supports a wide operating junction temperature range from -55°C to 150°C. Input capacitance is 914pF (max) at Vds=6V, and total gate charge is 19.6nC (max) at Vgs=8V, contributing to low switching losses.
The DMN1029UFDB-7 is fully RoHS3 compliant, lead-free, and halogen-free. It is moisture sensitivity level 1 per J-STD-020. Typical applications include load switches, power management functions, and portable power adaptors. Alternative packing options include the DMN1029UFDB-13 in 10,000-piece reels.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.73 | $0.73 |
| 10+ | $0.45 | $0.45 |
| 25+ | $0.38 | $0.38 |
| 50+ | $0.33 | $0.33 |
| 100+ | $0.29 | $0.29 |
| 3,000+ | $0.17 | $0.17 |
| 9,000+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is 12V.
It comes in a 6-pin U-DFN2020-6 (Type B) surface mount package with an exposed pad.
The operating junction temperature range is -55°C to 150°C.
Yes, it is RoHS3 compliant, lead-free, and halogen-free.
The maximum gate threshold voltage is 1V at Id=250µA.
The maximum gate charge is 19.6nC at Vgs=8V.
