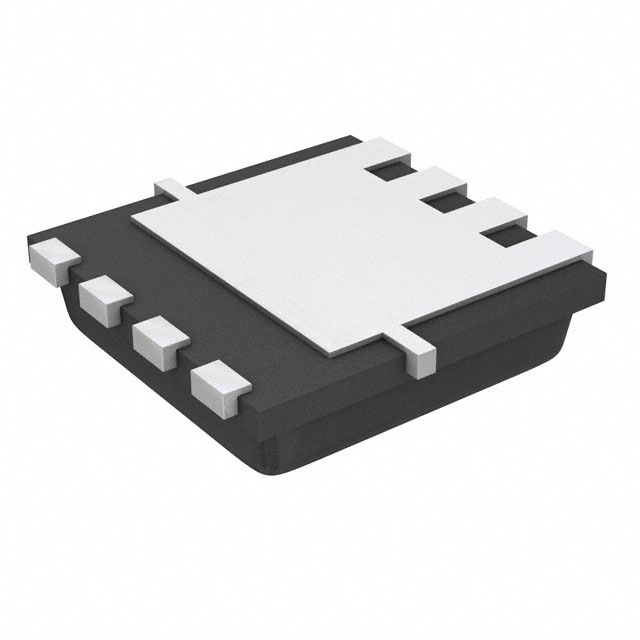

DMN1004UFV-7 N-Channel MOSFET, 12V drain-source voltage, 70A continuous drain current, low on-resistance 3.8mOhm at 4.5V gate drive. Surface mount PowerDI3333-8 package.
Mfr Part #:

DMN1004UFV-7

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
N-Channel MOSFET, 12V drain-source voltage, 70A continuous drain current, low on-resistance 3.8mOhm at 4.5V gate drive. Surface mount PowerDI3333-8 package.
✓ Total Stock: 21,000 pcs
$ Price Range: $0.26 - $1.15

DMN1004UFV-7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
21,000 pcs
On Request
21000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DMN1004UFV-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Halogen Free
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Termination Style
Vgs (Max)
Vgs(th) (Max) @ Id
Weight
View Similar Products (0)

DMN1004UFV-7 Description

Short technical summary and product information.

The DMN1004UFV-7 is an N-Channel Enhancement Mode MOSFET from Diodes Incorporated, designed for high-efficiency power management applications. It features a maximum drain-to-source voltage of 12V and a continuous drain current of 70A at Tc=25°C. The device offers low on-resistance of 3.8mOhm maximum at Vgs=4.5V and Id=15A, with a typical gate charge of 47nC at Vgs=8V. Input capacitance is 2385pF at Vds=6V. The MOSFET is housed in a compact PowerDI3333-8 (Type UX) surface mount package, occupying only 33% of the board area of an SO-8. It is ESD protected and supports operating junction temperatures from -55°C to 150°C. Applications include power management functions, DC-DC converters, and battery circuits. The device is totally lead-free, fully RoHS compliant, and halogen- and antimony-free.

DMN1004UFV-7 Quick Information

Product Type: N-Channel MOSFET
Canonical Name: DMN1004UFV-7
Subcategory: Single MOSFET

DMN1004UFV-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Lead Free

DMN1004UFV-7 Estimated Pricing

Qty Low High
1+ $1.15 $1.15
10+ $0.72 $0.72
25+ $0.60 $0.60
50+ $0.53 $0.53
100+ $0.47 $0.47
2,000+ $0.30 $0.30
6,000+ $0.26 $0.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

DMN1004UFV-7 Features

  • 12V drain-source voltage rating.
  • 70A continuous drain current at 25°C.
  • Low on-resistance of 3.8mOhm typical.
  • PowerDI3333-8 surface mount package.
  • ESD protected gate.

DMN1004UFV-7 Applications

  • Power management functions in portable devices.
  • DC-DC converter circuits.
  • Battery power switching applications.

DMN1004UFV-7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage?

12 V.

What package is the DMN1004UFV-7 available in?

PowerDI3333-8 (Type UX) surface mount.

What is the operating temperature range?

-55°C to 150°C (junction).

Is this part RoHS compliant?

Yes, totally lead-free and fully RoHS compliant.

What is the maximum on-resistance?

3.8mOhm at Vgs=4.5V, Id=15A; 5.1mOhm at Vgs=2.5V.

What is the maximum gate charge?

47 nC at Vgs=8V.

What is the maximum continuous drain current?

70A at Tc=25°C, Vgs=4.5V; 55A at Tc=70°C.
