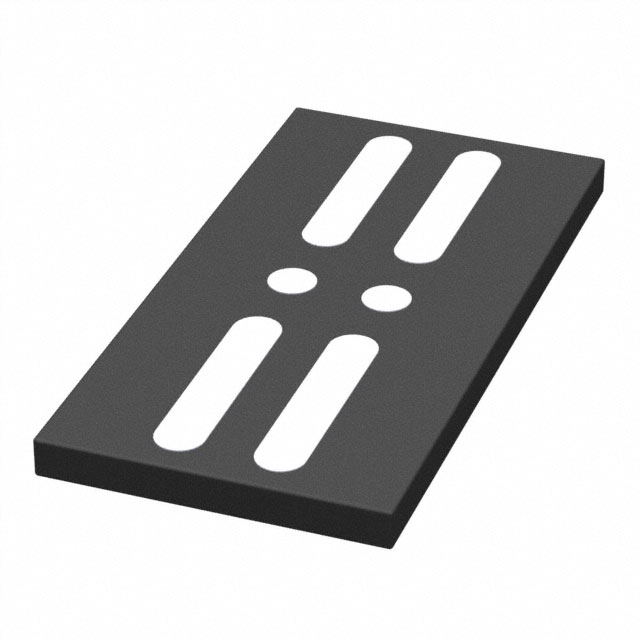

The DMN1002UCA6-7 is a dual N-channel enhancement mode MOSFET from Diodes Incorporated, configured as a common drain. It is designed for high-efficiency power management applications such as battery management and load switching.
This MOSFET features a source-source voltage rating of 12V and a continuous source current of 24.4A at VGS=4.5V and TA=25°C. The typical on-resistance is 2.36mΩ at VGS=3.8V. Gate charge is 68.6nC maximum at VGS=4V. The device can handle pulsed currents up to 100A.
The device is housed in a 6-SMD, no lead package (X4-DSN3118-6) with a low profile of 0.11mm. It is surface mountable and comes in tape and reel packaging with 3000 pieces per reel. The operating temperature range is -55°C to 150°C. It is RoHS3 compliant, lead-free, and halogen and antimony free.
Typical applications include battery management, load switching, and battery protection circuits. The MOSFET is also suitable for automotive applications requiring specific change control (AEC-Q100 qualified versions available upon request).
| Qty | Low | High |
|---|---|---|
| 3,000+ | $0.42 | $0.42 |
| 9,000+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12V.
6-SMD, No Lead (X4-DSN3118-6).
-55°C to 150°C (TJ).
Yes, it is RoHS3 compliant and lead-free.
24.4A at VGS=4.5V and TA=25°C.
2.36mΩ at VGS=3.8V.
68.6nC maximum at VGS=4V.
