| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
275 pcs
|
275 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dielectric Strength | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Life Test | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width | |
| dV/dt Pulse Capability |

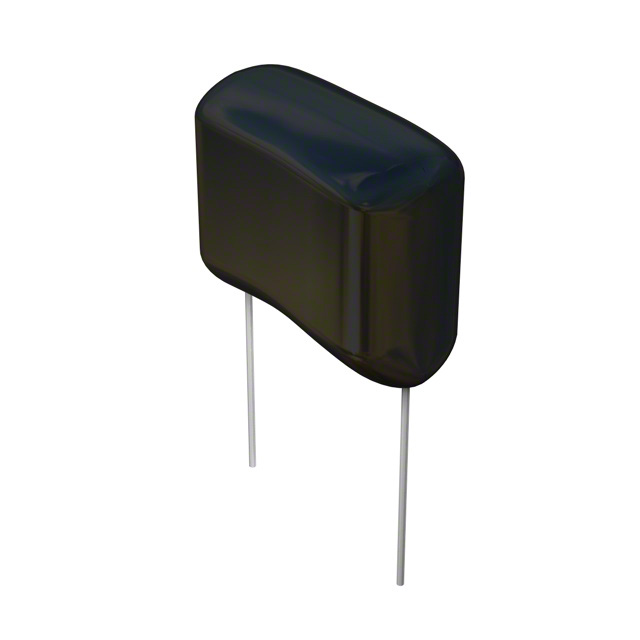

The DMM6P68K-F is a metallized polyester film capacitor from Cornell Dubilier Electronics (CDE), part of the DMM series. It offers a capacitance of 0.68 µF with a tolerance of ±10% and a rated voltage of 630 VDC. The capacitor features a non-inductive winding and self-healing properties, making it suitable for DC applications where long life and performance stability are critical.
This radial-leaded component has a lead spacing of 27.50 mm and measures 31.00 mm in length, 15.00 mm in width, and 26.00 mm in height. It operates over a temperature range of -55°C to +125°C, with derating to 50% of rated voltage above 85°C. The dielectric strength is 150% of rated voltage for 1 minute, and the dissipation factor is 1% maximum at 25°C and 1 kHz.
The capacitor is RoHS3 compliant and has an MSL rating of 1 (unlimited). It is designed for general purpose applications and is available in a through-hole mounting style with PC pin terminations.
The capacitance is 0.68 µF with a tolerance of ±10%.
The rated voltage is 630 VDC.
The dielectric material is metallized polyester.
The package is radial through-hole with a lead spacing of 27.50 mm.
The operating temperature range is -55°C to +125°C, with derating to 50% of rated voltage above 85°C.
Yes, it is RoHS3 compliant.
The dissipation factor is 1% maximum at 25°C and 1 kHz.
