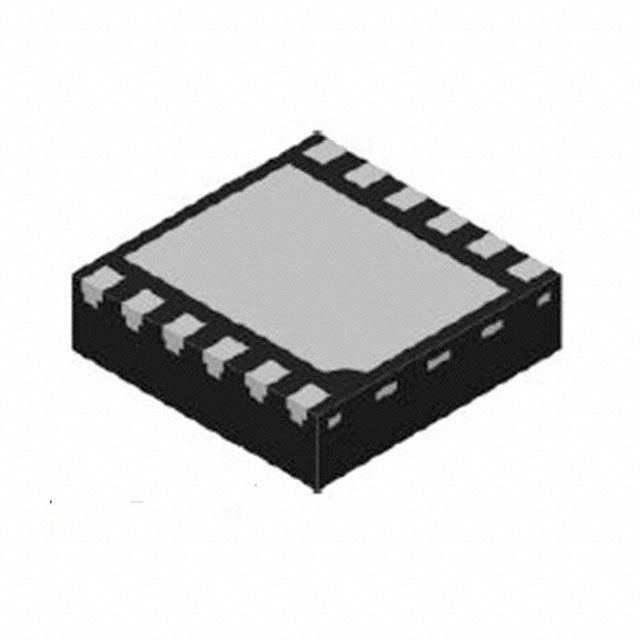

The Diodes Incorporated DML3009LDC-7 is a single-channel smart load switch designed for efficient power domain switching. It features an integrated N-channel MOSFET with ultra-low on-resistance, providing a cost-effective solution for power management and hot-swap applications.
Key electrical specifications include an input voltage range of 0.5V to 13.5V, a maximum output current of 20A, and a typical on-resistance of 6.1mOhm. The device supports a supply voltage range of 3V to 5.5V and includes fault protection features such as short-circuit, thermal shutdown, and undervoltage lockout (UVLO).
This load switch is housed in a compact V-DFN3030-12 package, suitable for surface mounting. The package material is molded plastic with a UL Flammability Classification Rating of 94V-0. It operates within a temperature range of -40°C to 85°C.
The DML3009LDC-7 is designed for applications in portable electronics, notebooks, tablets, telecoms, networking, medical, and industrial equipment. Its features like soft-start and power good signaling enhance system reliability and monitoring capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 0.5V to 13.5V.
The maximum output current is 20A.
The typical on-resistance is 6.1mOhm.
The operating temperature range is -40°C to 85°C.
It is supplied in a V-DFN3030-12 package.
Yes, it is RoHS3 Compliant.
It includes short-circuit, thermal shutdown, and UVLO protection.
