DML3006LFDS-7 The Diodes Incorporated DML3006LFDS-7 is a single-channel smart load switch designed for efficient power domain switching. It offers features like inrush current limiting and fault protection.
Mfr Part #:

DML3006LFDS-7

Available from 2 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated DML3006LFDS-7 is a single-channel smart load switch designed for efficient power domain switching. It offers features like inrush current limiting and fault protection.
✓ Total Stock: 7,441 pcs
$ Price Range: $0.32

DML3006LFDS-7 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,020 pcs
On Request
4020 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
3,421 pcs
On Request
3421 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DML3006LFDS-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Fault Protection
Halogen Free
Input Type
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Current
Output Type
Ratio
Rds On (Typ)
SVHC Present
Supplier Device Package
Supply Voltage
Switch Type
Voltage
View Similar Products (0)

DML3006LFDS-7 Description

Short technical summary and product information.

The Diodes Incorporated DML3006LFDS-7 is a single-channel smart load switch providing an area-reducing solution for efficient power domain switching. It integrates advanced control functionality with an N-channel MOSFET, offering ultra-low on-resistance.



Key electrical specifications include an input voltage range of 0.5V to 13.5V and a maximum output current of 10.5A. The device features soft-start via a controlled slew rate, power good signaling, thermal shutdown, VIN undervoltage lockout, and short-circuit protection. Its typical on-resistance is 8mOhm.

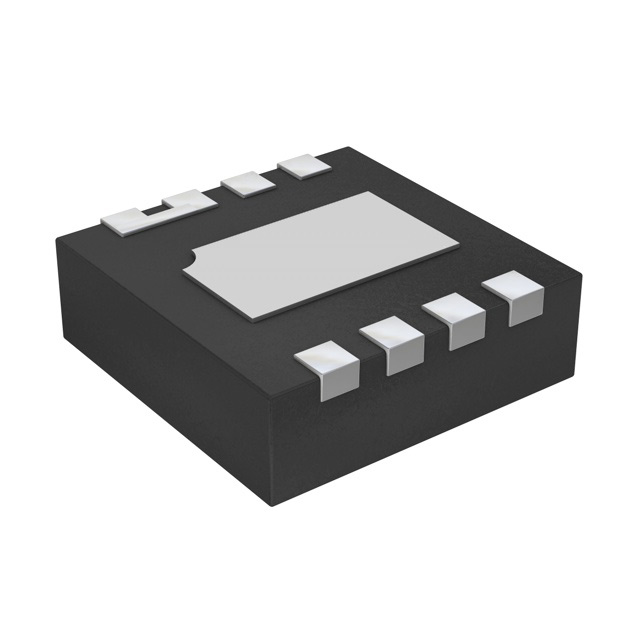

This load switch is housed in a compact V-DFN2020-8 package, making it suitable for space-constrained applications. It operates within a temperature range of -40°C to 85°C (TA). The device is designed for power management and hot-swap applications, offering system safeguards and monitoring capabilities.



Environmental compliance includes RoHS3 status and Moisture Sensitivity Level 1. The DML3006LFDS-7 is also described as totally lead-free and halogen/antimony-free.

DML3006LFDS-7 Quick Information

Product Type: Load Switch
Canonical Name: Diodes Incorporated DML3006LFDS Single Channel Smart Load Switch
Subcategory: Power Distribution Switches

DML3006LFDS-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1
REACH Status: REACH Unaffected
Lead Free: Totally Lead-Free

DML3006LFDS-7 Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

DML3006LFDS-7 Features

  • Single channel smart load switch.
  • Input voltage range 0.5V to 13.5V.
  • Maximum output current 10.5A.
  • Ultra-low on-resistance of 8mOhm.
  • Compact V-DFN2020-8 package.

DML3006LFDS-7 Applications

  • Ideal for power management applications.
  • Suitable for hot-swap devices.
  • Used in portable electronics.
  • Applicable to notebook computers.
  • Supports telecom equipment.

DML3006LFDS-7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the DML3006LFDS-7?

The input voltage range is 0.5V to 13.5V.

What is the maximum output current of the DML3006LFDS-7?

The maximum output current is 10.5A.

What is the typical on-resistance for this load switch?

The typical on-resistance is 8mOhm.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C (TA).

What package type is the DML3006LFDS-7 supplied in?

It is supplied in a V-DFN2020-8 package.

Is the DML3006LFDS-7 RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level is 1.
