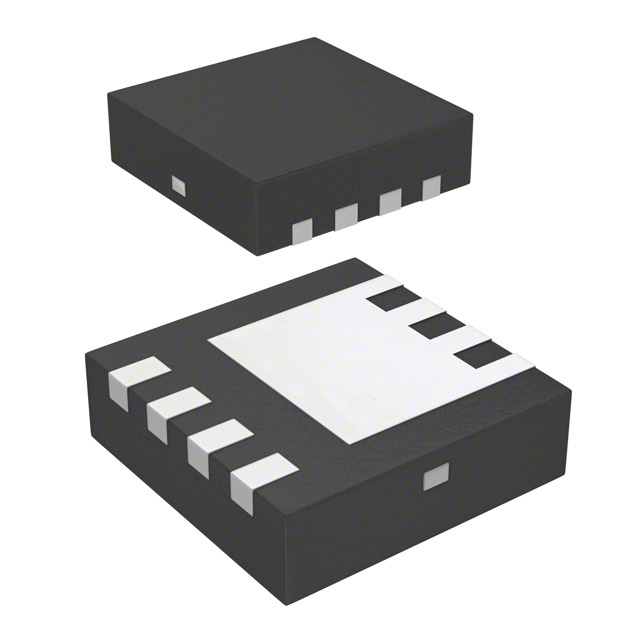

The DMG8601UFG-7 is a dual N-channel enhancement mode MOSFET from Diodes Incorporated, designed for space-constrained applications requiring two MOSFETs in a single package. It features a common drain configuration with two independent gates and sources.
Key electrical specifications include a drain-source voltage (Vdss) of 20V, a maximum gate-source voltage of ±12V, and a continuous drain current of 6.1A at 25°C ambient temperature (5.2A at 70°C). The device offers low on-resistance, with a maximum Rds(on) of 23mΩ at VGS=4.5V and ID=6.5A, and 34mΩ at VGS=1.8V and ID=3.5A, making it suitable for low-voltage logic-level gate drive applications. Input capacitance is 143pF and total gate charge is 8.8nC, enabling fast switching.
The MOSFET is housed in a U-DFN3030-8 surface-mount package with NiPdAu over copper lead frame finish. It is rated for operation from -55°C to +150°C junction temperature and has a power dissipation of 920mW. The device is RoHS compliant, halogen and antimony free, and qualified to AEC-Q101 standards for high reliability.
