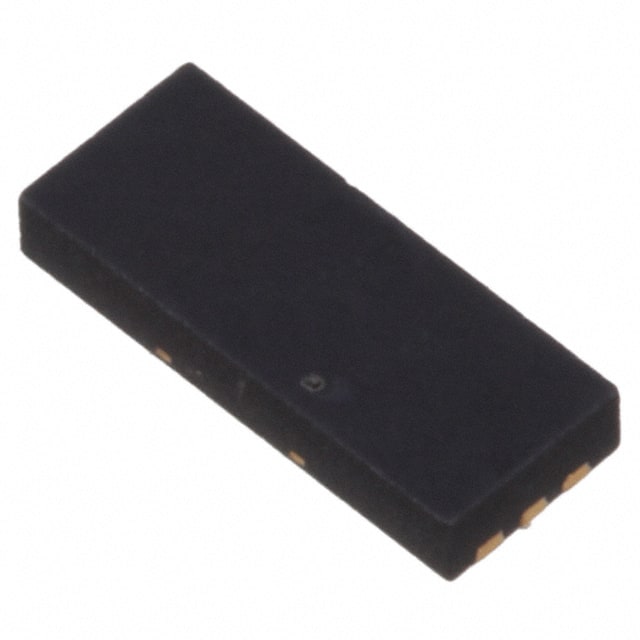

The DMG5802LFX-7 is a dual N-channel enhancement mode MOSFET designed by Diodes Incorporated for efficient power management. It features a maximum drain-source voltage of 24V and supports continuous drain currents up to 6.5A (at VGS=4.5V) and 5.6A (at VGS=2.5V). The device offers low on-resistance of 15 mOhm at VGS=4.5V and 20 mOhm at VGS=2.5V, enabling high efficiency in switching applications.
This MOSFET is optimized for fast switching with low gate charge (31.3 nC) and input capacitance of 1066.4 pF. It is ESD protected up to 3 kV and operates over a wide temperature range from -55°C to 150°C. The part is qualified to AEC-Q101 standards for high reliability and is fully RoHS, lead-free, and halogen-free compliant.
The DMG5802LFX-7 is supplied in a W-DFN5020-6 surface-mount package with exposed pad for enhanced thermal performance. It is delivered in tape and reel packaging with a standard quantity of 3000 pieces per reel, suitable for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.19 | $1.19 |
| 10+ | $0.74 | $0.74 |
| 25+ | $0.62 | $0.62 |
| 50+ | $0.55 | $0.55 |
| 100+ | $0.49 | $0.49 |
| 3,000+ | $0.29 | $0.29 |
| 9,000+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 V.
6.5 A at VGS=4.5V and 25°C; 5.6 A at VGS=2.5V and 25°C.
15 mOhm maximum at VGS=4.5V and ID=6.5A; 20 mOhm maximum at VGS=2.5V and ID=5.6A.
Yes, it is RoHS3 compliant and fully lead-free.
-55°C to 150°C (junction).
6-VFDFN Exposed Pad (W-DFN5020-6).
