| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40,000 pcs
|
40000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Finish | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id | |
| Weight |
The DMG3415UFY4Q-7 is a P-Channel enhancement mode MOSFET from Diodes Incorporated designed to minimize on-state resistance while maintaining superior switching performance. It is ideally suited for backlighting, power management functions, and DC-DC converter applications.
Key electrical characteristics include a maximum drain-source voltage of 16V, continuous drain current of 2.5A at 25°C, and pulsed drain current of 12A. The on-resistance is specified at multiple gate drive voltages: 39mΩ at VGS=-4.5V, 52mΩ at VGS=-2.5V, and 65mΩ at VGS=-1.8V, enabling low-voltage operation. Input capacitance is 282pF and total gate charge is 10nC, supporting fast switching.

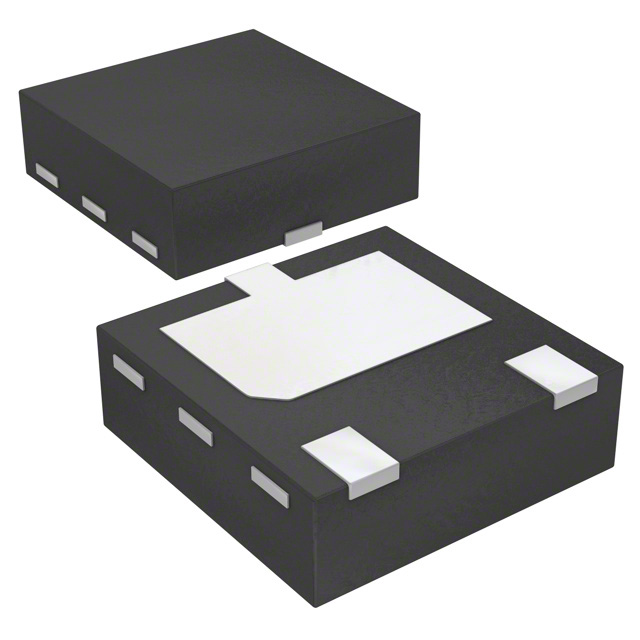

The device is housed in a compact X2-DFN2015-3 surface-mount package with NiPdAu over copper leadframe termination. It operates over a junction temperature range of -55°C to 150°C. The MOSFET is fully RoHS3 compliant, lead-free, halogen and antimony free, and qualified to AEC-Q101 standards for automotive applications. ESD protection rating is 3kV HBM.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.77 | $0.77 |
| 10+ | $0.44 | $0.44 |
| 100+ | $0.30 | $0.30 |
| 3,000+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is 16 V.
It is available in the X2-DFN2015-3 surface-mount package (3-XDFN).
The operating junction temperature range is -55°C to +150°C.
Yes, it is RoHS3 compliant (no purposely added lead).
The continuous drain current is 2.5 A at TA = +25°C.
The device specifies on-resistance at 1.8V, 2.5V, and 4.5V gate drives, with 1.8V being the minimum recommended drive voltage.
Yes, it is qualified to AEC-Q101 standards.
