| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
2,787 pcs
|
2787 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id | |
| Weight |
The DMG3407SSN-7 is a P-Channel enhancement mode MOSFET from Diodes Incorporated designed for high efficiency power management applications. It features a drain-source breakdown voltage of -30V and a continuous drain current of -4.0A at TA=+25°C with VGS=-10V. The device offers low on-state resistance of 50mΩ maximum at VGS=-10V and 72mΩ maximum at VGS=-4.5V, enabling low conduction losses.

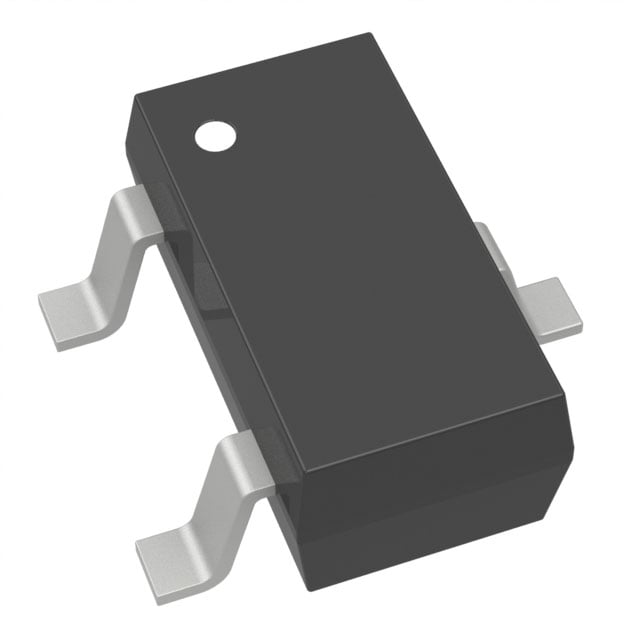

This MOSFET is housed in a surface-mount SC-59 package with a weight of 0.014 grams. It is qualified to AEC-Q101 standards for high reliability and is fully RoHS3 compliant and lead-free. The operating junction temperature range is -55°C to +150°C, and the device is moisture sensitivity level 1 per J-STD-020.
Typical applications include load switches, DC-DC converters, and general power management functions. The low input capacitance of 700pF and fast switching speed make it suitable for high-frequency switching circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.55 | $0.55 |
| 10+ | $0.34 | $0.34 |
| 100+ | $0.22 | $0.22 |
| 500+ | $0.16 | $0.16 |
| 3,000+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source breakdown voltage is -30V minimum.
The maximum continuous drain current is -4.0A at TA=+25°C with VGS=-10V.
The maximum on-resistance is 50mΩ at VGS=-10V and 72mΩ at VGS=-4.5V.
It is available in a surface-mount SC-59 package (supplier device package SC-59-3).
The operating junction temperature range is -55°C to +150°C.
Yes, it is RoHS3 compliant and fully lead-free per the datasheet.
