| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
165 pcs
|
165 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Derating | |
| Dielectric Material | |
| Dielectric Strength | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Length | |
| Life Test | |
| Mounting Type | |
| Operating Temperature | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width |

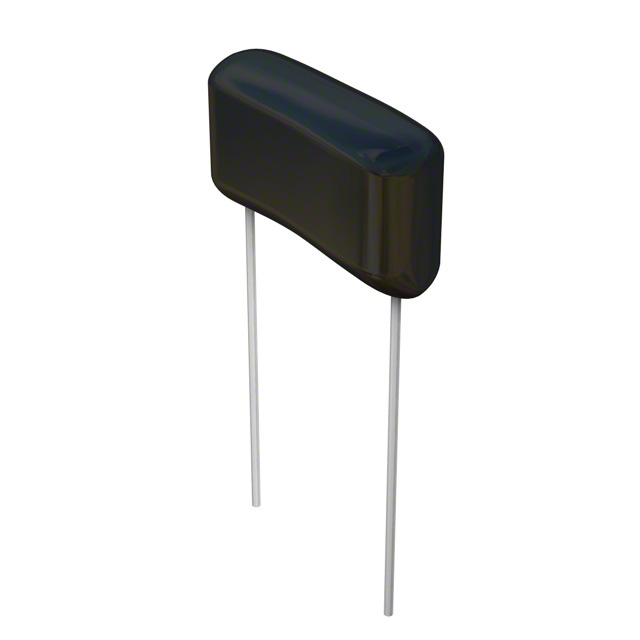

The DME6S68K is a Type DME radial-leaded, mini-dipped polyester film capacitor from Cornell Dubilier Electronics (CDE). It offers a capacitance of 0.068µF with ±10% tolerance and a DC voltage rating of 630V. The capacitor uses a metallized polyester dielectric and features PC pin terminations with a lead spacing of 15.00mm.
This through-hole device is housed in a radial package measuring 18.50mm length, 6.00mm width, and 11.50mm height. The operating temperature range is -55°C to +125°C. Key electrical characteristics include a dissipation factor of 1% maximum at 25°C and 1kHz, a minimum insulation resistance of 3000 MΩ·µF, and a dielectric strength of 150% of rated voltage for 1 minute.
It is intended for DC applications where miniature size and reliable performance are required. The DME series capacitors deliver performance comparable to physically larger capacitors due to improvements in film technology. The part RoHS3 compliant and REACH unaffected.
The Digi-Key cross-reference part number is DME6S68K-ND. For design guidance, refer to the CDE Application Guide for test conditions.
0.068µF.
630V DC.
±10%.
Metallized polyester.
Radial leaded through-hole with 15.00mm lead spacing.
-55°C to +125°C.
Yes, RoHS3 compliant.
