| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dielectric Strength | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance (Minimum @ +25 °C) | |
| Lead Diameter | |
| Lead Spacing | |
| Length | |
| Life Test | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Package Type | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Voltage Rating DC | |
| Width | |
| dv/dt |

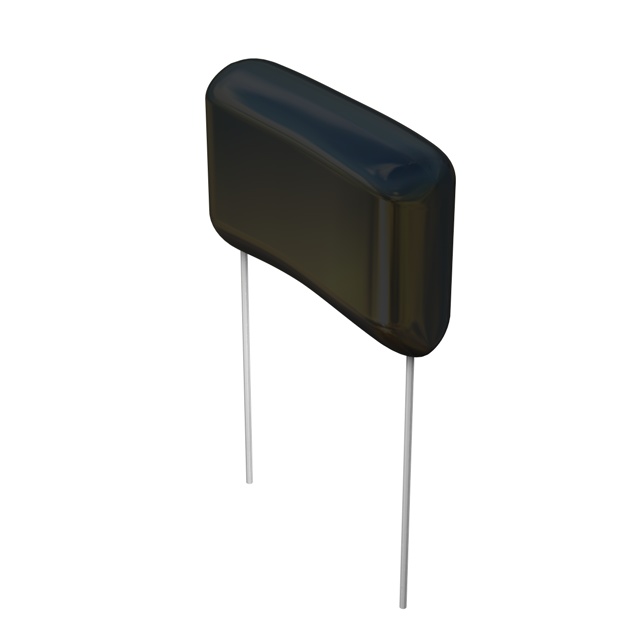

The DME2W2P7K is a 2.7 µF metallized polyester film capacitor from Cornell Dubilier Electronics (CDE), part of the DME series. It is rated for 250V DC operation with a capacitance tolerance of ±10%. The capacitor uses a metallized polyester dielectric, providing a dissipation factor of 1% maximum at 25°C and 1kHz. Insulation resistance is a minimum of 3000 MΩ·µF, and the dV/dt rating is 6 V/µs.
The operating temperature range is -55°C to 125°C, with derating of 50% of rated voltage applied above 85°C. The capacitor is housed in a radial leaded package with PC pin terminations. Dimensions are 26.00 mm length, 10.00 mm width, and 17.50 mm height, with a lead spacing of 22.50 mm. It is designed for through-hole mounting and is suitable for general purpose DC applications such as filtering, coupling, and decoupling.
2.7 µF.
250V DC.
Polyester, Metallized.
±10%.
Radial leaded through hole with PC pins and 22.5mm lead spacing.
-55°C to 125°C with derating above 85°C.
1% maximum at 25°C, 1kHz.
