| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dielectric Strength | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance (Minimum) | |
| Insulation Resistance (Nominal) | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package Type | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width |

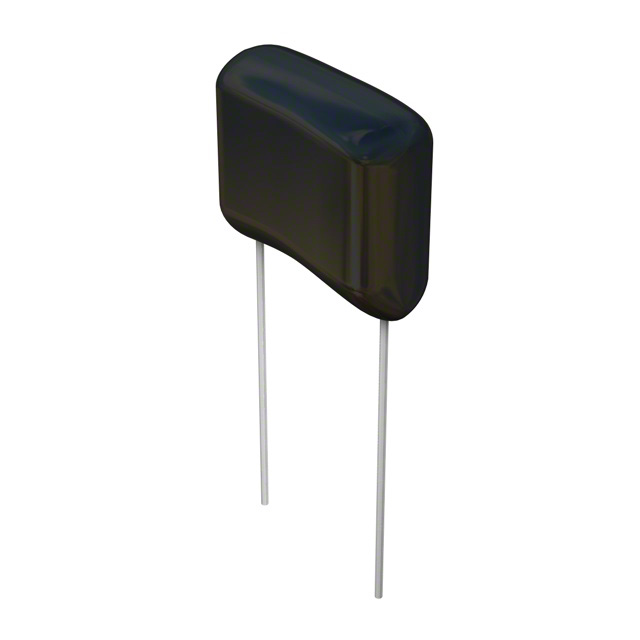

The DME2W1K-F is a metallized polyester film capacitor from Cornell Dubilier Electronics, part of the DME series. It offers a capacitance of 1 µF with a voltage rating of 250 VDC and a tolerance of ±10%. The capacitor uses a polyester dielectric with metallized electrodes, providing stable performance in DC applications.
This capacitor is designed for through-hole mounting with a radial package. Its dimensions are 18.5 mm length, 8.0 mm width, and 17.0 mm height, with a lead spacing of 15.0 mm. The operating temperature range is -55°C to 125°C, making it suitable for a wide range of environments.
Electrically, the dissipation factor is 1% maximum at 25°C and 1 kHz. Insulation resistance is typically 3000 MΩ·µF, with a minimum of 9000 MΩ. The dielectric strength is tested at 150% of rated voltage for one minute. These characteristics make it reliable for filtering, coupling, and bypass applications in general purpose DC circuits.
The capacitor is RoHS3 compliant and has an MSL rating of 1 (unlimited). It is supplied in a radial leaded package with PC pin terminations.
1 µF
250 VDC
Polyester, Metallized
±10%
Radial, through-hole
-55°C to 125°C
1% maximum at 25°C, 1 kHz
