| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dielectric Strength | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Length | |
| Life Test | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width |

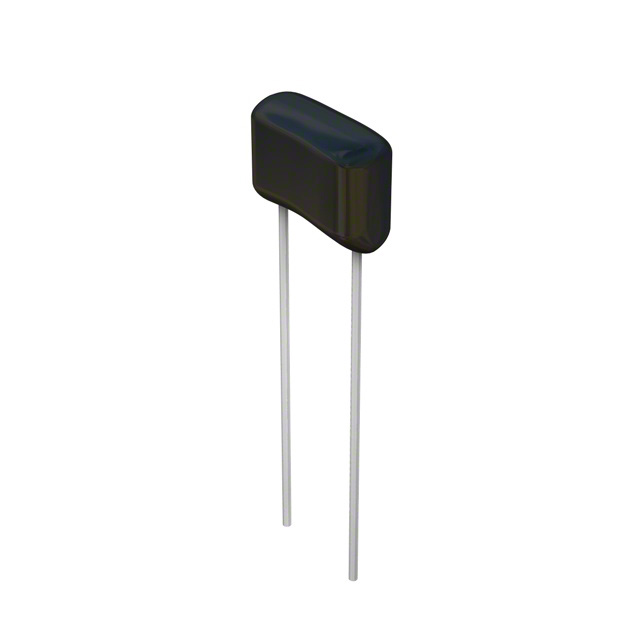

The DME2S68K-F is a metallized polyester film capacitor from Cornell Dubilier Electronics, part of the DME series. It offers a capacitance of 0.068 µF with a voltage rating of 250V DC and a tolerance of ±10%. The capacitor exhibits a maximum dissipation factor of 1% at 25°C and 1kHz, an insulation resistance of 3,000 MΩ·µF minimum, and a dielectric strength of 150% for 1 minute. It is rated for a life test of 1,000 hours at 85°C at 125% of rated voltage.
Designed for general purpose applications, this capacitor operates over a temperature range of -55°C to 125°C. The radial through-hole package features PC pin terminations with a lead spacing of 7.50mm. The overall dimensions are 10.30mm length, 4.80mm width, and 7.90mm height.
The metallized polyester construction provides self-healing properties and stable capacitance over a wide temperature range. This component is suitable for DC applications including filtering, coupling, bypass, and timing circuits where reliable performance and compact size are required.
0.068 µF.
250V DC.
±10%.
Polyester, metallized.
Radial through-hole with PC pins and 7.50mm lead spacing.
-55°C to 125°C.
Maximum 1% at 25°C and 1kHz.
