| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dielectric Strength | |
| Dissipation Factor (Max @ 25°C, 1kHz) | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Rated Voltage (DC) | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width |

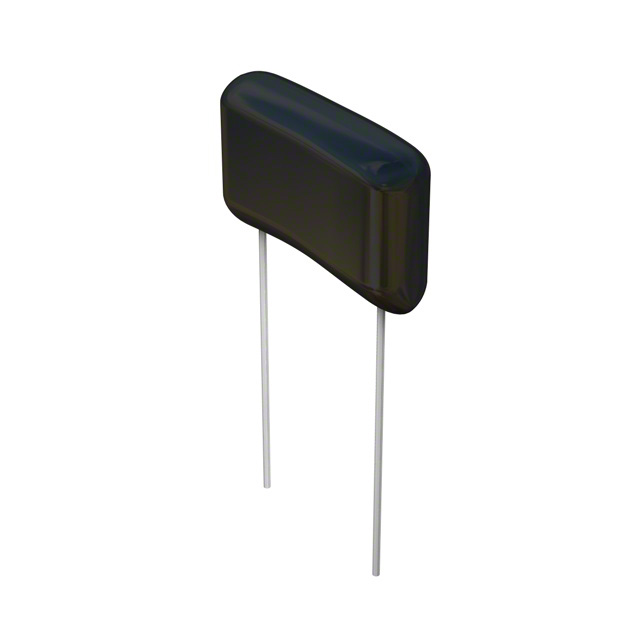

The DME10S39K-F is a radial leaded metallized polyester film capacitor from Cornell Dubilier Electronics (CDE), part of the DME series. It offers a capacitance of 0.039 µF with ±10% tolerance and a high voltage rating of 1000 V DC. This through-hole component features PC pin terminations with a lead spacing of 17.50 mm and compact dimensions: 21.00 mm length, 7.00 mm width, and 14.50 mm height.
Electrical characteristics include a maximum dissipation factor of 1% at 25°C and 1 kHz, insulation resistance of 3000 MΩ·µF (minimum 9000 MΩ), and dielectric strength of 150% of rated voltage for 1 minute. The capacitor operates over a temperature range of -55°C to 125°C, making it suitable for a variety of general purpose applications.
Environmental compliance data indicates RoHS3 compliance and REACH unaffected status, though supporting documentation is not verified. The part is moisture sensitivity level 1 (unlimited). Packaging is in bulk or standard quantities per manufacturer practice, but specific package quantity is not specified.
This capacitor is designed for DC applications requiring high voltage in a miniature package. Typical uses include filtering, coupling, decoupling, and snubber circuits in power supplies and industrial electronics.
0.039 µF (39 nF).
1000 V DC (1 kV).
Metallized polyester film.
±10%.
Radial through-hole package with PC pin terminations and 17.50 mm lead spacing.
-55°C to 125°C.
