| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
537 pcs
|
537 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dielectric Strength | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Length | |
| Life Test | |
| Mounting Type | |
| Operating Temperature | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width | |
| dv/dt |

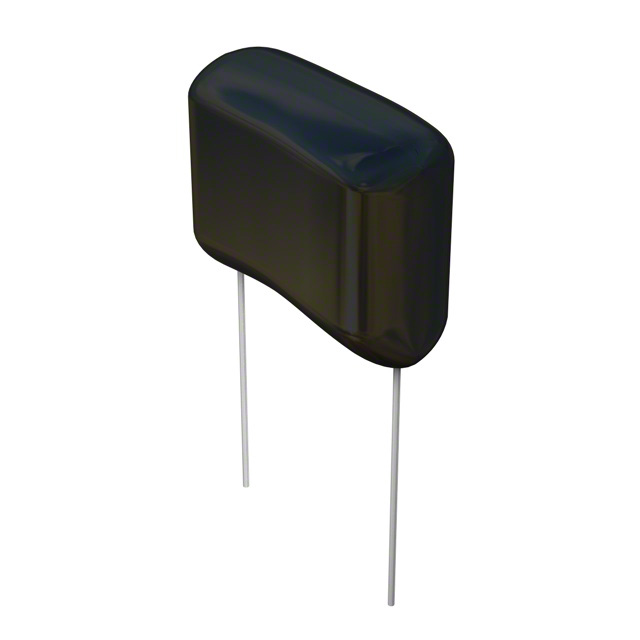

The DME10P22K-F is a 0.22 µF film capacitor from Cornell Dubilier's DME series, featuring a metallized polyester dielectric. It is rated for 1000V DC operation with a capacitance tolerance of ±10%. The capacitor is housed in a radial through-hole package with a lead spacing of 22.50mm and PC pin terminations. Its dimensions are 26.00mm x 12.00mm x 23.00mm.
Electrical characteristics include a dissipation factor of 1% maximum at 25°C and 1kHz, insulation resistance of 3,000 MΩ·µF minimum, and dielectric strength of 150% for 1 minute. The dV/dt rating is 6 V/µs. The operating temperature range is -55°C to 125°C, making it suitable for a wide variety of environments.
This capacitor is designed for general purpose DC applications, including high voltage filtering, snubber circuits, and coupling. It is RoHS3 and REACH compliant, with an MSL rating of 1 (unlimited). The DME series is known for miniaturized size compared to equivalent film capacitors, enabled by improvements in film technology.
0.22 µF.
1000V DC.
Metallized polyester.
±10%.
Radial through-hole with 22.5mm lead spacing.
-55°C to 125°C.
1% maximum at 25°C, 1kHz.
