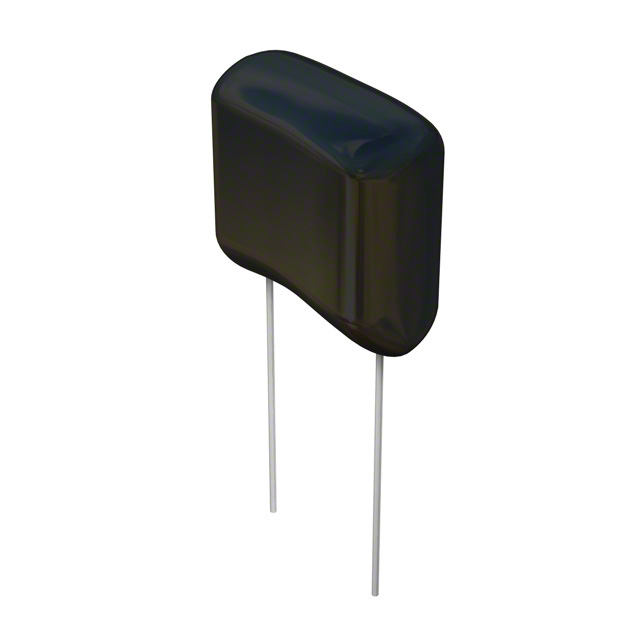

DME10P1K-F Metallized polyester film capacitor with 0.1 µF capacitance, 1000V DC voltage rating, and ±10% tolerance in a radial through-hole package.
Mfr Part #:

DME10P1K-F

Available from 2 distributors
Mfr Name: Cornell Dubilier Electronics (CDE)
Cornell Dubilier Electronics (CDE)
Metallized polyester film capacitor with 0.1 µF capacitance, 1000V DC voltage rating, and ±10% tolerance in a radial through-hole package.
✓ Total Stock: 693 pcs
$ Price Range: $2.10

DME10P1K-F Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
415 pcs
On Request
415 pcs On Request 1 On Request On Request On Request On Request On Request
Husky International Electronic ✓
Non-Authorised Inventory information
278 pcs
On Request
278 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DME10P1K-F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Dielectric Material
Dissipation Factor
Height
Insulation Resistance
Lead Spacing
Length
Mounting Type
Operating Temperature
Operating Temperature Range
Package / Case
Termination
Termination Style
Tolerance
Voltage Rating
Width
View Similar Products (0)

DME10P1K-F Description

Short technical summary and product information.

The DME10P1K-F is a metallized polyester film capacitor from Cornell Dubilier Electronics (CDE), offering 0.1 µF capacitance with ±10% tolerance and a 1000V DC voltage rating. The polyester dielectric provides stable electrical characteristics over the operating temperature range of -55°C to 125°C. Key performance parameters include a dissipation factor of 1% maximum at 25°C and 1kHz, insulation resistance of 3000 MΩ·µF minimum (9000 MΩ minimum), and dielectric strength of 150% of rated voltage for one minute.



This capacitor is housed in a radial through-hole package with PC pin terminations. The dimensions are 21.00mm in length, 10.00mm in width, and 21.50mm in height, with a lead spacing of 17.50mm. This package style is suitable for PCB mounting in applications where through-hole components are preferred.



Designed for general purpose DC applications, the DME10P1K-F undergoes a life test of 1000 hours at 85°C with 125% of rated voltage applied, ensuring long-term reliability. Its metallized construction offers self-healing properties, enhancing robustness in high-voltage circuits.

DME10P1K-F Quick Information

Product Type: Film Capacitor
Series: DME
Canonical Name: DME10P1K-F Metallized Polyester Film Capacitor, 0.1 µF, 1000V DC, ±10%, Radial
Subcategory: Polyester Film Capacitor

DME10P1K-F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DME10P1K-F Estimated Pricing

Qty Low High
5+ $2.10 $2.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

DME10P1K-F Features

  • 0.1 µF capacitance with ±10% tolerance.
  • Rated for 1000V DC operation.
  • Metallized polyester dielectric construction.
  • Radial through-hole package with 17.50 mm lead spacing.
  • Operating temperature range from -55°C to 125°C.

DME10P1K-F Applications

  • Suitable for high-voltage DC filtering applications.
  • Used in general purpose electronic circuits.
  • Ideal for DC energy storage and bypass applications.

DME10P1K-F FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the DME10P1K-F?

The nominal capacitance is 0.1 µF.

What is the voltage rating of the DME10P1K-F?

The maximum DC voltage rating is 1000V (1kV).

What dielectric material does the DME10P1K-F use?

The dielectric material is metallized polyester.

What is the capacitance tolerance of the DME10P1K-F?

The tolerance is ±10%.

What is the package type of the DME10P1K-F?

The capacitor comes in a radial through-hole package with PC pin terminations and 17.50 mm lead spacing.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What is the dissipation factor of the DME10P1K-F?

The dissipation factor is 1% maximum at 25°C and 1kHz.
