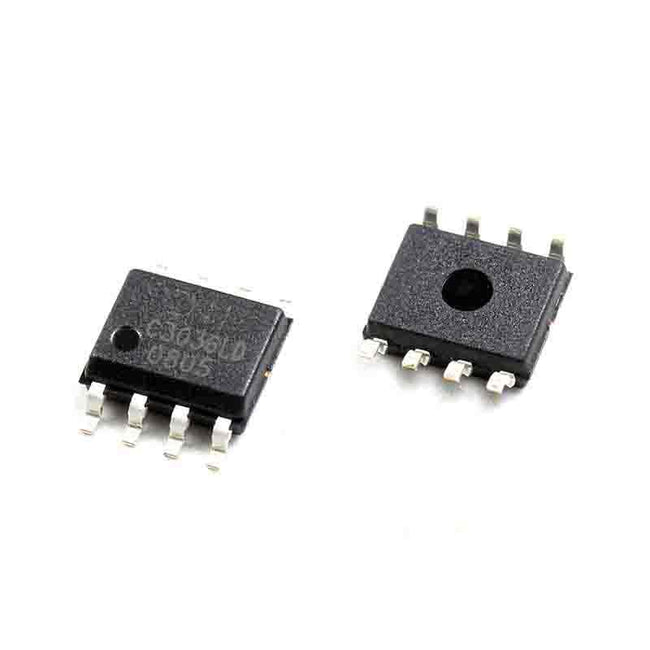

DMC3036LSD-13 The DMC3036LSD-13 is a complementary N and P-Channel enhancement mode MOSFET from Diodes Incorporated. It features a 30V drain-source voltage, 5A continuous drain current (N-Channel), and low on-resistance down to 36mΩ.
Mfr Part #:

DMC3036LSD-13

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The DMC3036LSD-13 is a complementary N and P-Channel enhancement mode MOSFET from Diodes Incorporated. It features a 30V drain-source voltage, 5A continuous drain current (N-Channel), and low on-resistance down to 36mΩ.
✓ Total Stock: 10,000 pcs

DMC3036LSD-13 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request 1138+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DMC3036LSD-13 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Drain to Source Voltage (Vdss)
FET Feature
Gate Charge (Qg) (Max) @ Vgs
Halogen Free
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power
Rds On (Max) @ Id, Vgs
SVHC Present
Supplier Device Package
Tape & Reel
Technology
Termination Finish
Vgs(th) (Max) @ Id
View Similar Products (0)

DMC3036LSD-13 Description

Short technical summary and product information.

The DMC3036LSD-13 is a complementary pair enhancement mode MOSFET from Diodes Incorporated, integrating both N-Channel and P-Channel MOSFETs in a single 8-SOIC package. This device is designed for high efficiency power management applications, offering low on-resistance and low input capacitance for superior switching performance.



The N-Channel MOSFET has a maximum drain-source voltage of 30V and a continuous drain current of 5A, with a maximum on-resistance of 36mΩ at VGS=10V. The P-Channel MOSFET has a maximum drain-source voltage of -30V and a continuous drain current of 4.5A, with a maximum on-resistance of 36mΩ at VGS=-10V. Both channels feature logic level gate drive, with a maximum gate threshold voltage of 2.1V.



The device is housed in a surface mount 8-SOIC package with matte tin termination finish. It is RoHS3 compliant, halogen-free, and lead-free, with an MSL rating of Level 1. The DMC3036LSD-13 is suitable for motor control, DC-DC converters, power management functions, and inverter applications.

DMC3036LSD-13 Quick Information

Product Type: MOSFET Array
Canonical Name: DMC3036LSD-13 Complementary N and P-Channel Enhancement Mode MOSFET
Subcategory: Complementary Pair MOSFET Array

DMC3036LSD-13 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: No

DMC3036LSD-13 Features

  • Complementary N and P-Channel MOSFET pair.
  • 30V drain-source voltage rating.
  • Low on-resistance of 36mΩ.
  • Logic level gate drive capability.
  • RoHS3 compliant and halogen-free.

DMC3036LSD-13 Applications

  • Ideal for DC-DC converter circuits.
  • Used in motor control applications.
  • Suitable for power management functions.
  • Applied in inverter designs.

DMC3036LSD-13 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage for the N-Channel MOSFET?

The maximum drain-source voltage for the N-Channel MOSFET is 30V.

What is the maximum continuous drain current for the P-Channel MOSFET?

The maximum continuous drain current for the P-Channel MOSFET is 4.5A.

What is the operating temperature range of this device?

The operating junction temperature range is -55°C to 150°C.

What package type is the DMC3036LSD-13 available in?

The DMC3036LSD-13 is available in an 8-SOIC surface mount package.

Is the DMC3036LSD-13 RoHS compliant?

Yes, the DMC3036LSD-13 is RoHS3 compliant.

What is the maximum on-resistance for the N-Channel MOSFET at VGS=10V?

The maximum on-resistance for the N-Channel MOSFET at VGS=10V is 36mΩ.

What is the maximum gate threshold voltage?

The maximum gate threshold voltage is 2.1V at ID=250µA.
