DMB-4773 DIN Rail Mount Multi-Board Box with 36 PCB terminals. Gray ABS/PC blend, UL94 V-0 rated, operating temperature -20°C to +70°C.
Mfr Part #:

DMB-4773

Available from 1 distributors
Mfr Name: Bud Industries
Bud Industries
DIN Rail Mount Multi-Board Box with 36 PCB terminals. Gray ABS/PC blend, UL94 V-0 rated, operating temperature -20°C to +70°C.
✓ Total Stock: 3 pcs

DMB-4773 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DMB-4773 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Container Type
Design
Features
Height
Length
Material
Material Flammability Rating
Mounting Type
Operating Temperature Range
Weight
Width
View Similar Products (0)

DMB-4773 Description

Short technical summary and product information.

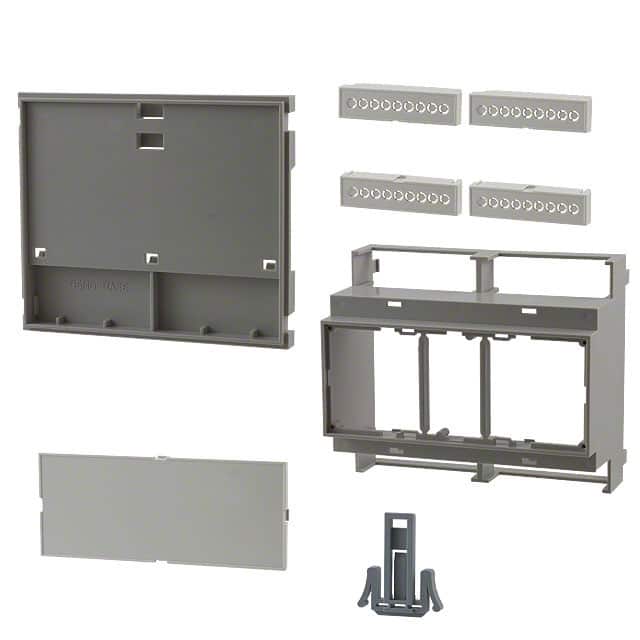

The Bud Industries DMB-4773 is a DIN rail mountable enclosure designed for multi-board applications. It accommodates up to three PCBs (not supplied) with a typical board thickness of 1.60mm and features 36 PCB terminals on 5.08mm (0.200") spacing. The housing is made from a durable gray ABS/PC blend with a UL94 V-0 flammability rating, suitable for industrial environments.



The box has external dimensions of 106.25mm (4.183") length, 90.20mm (3.551") width, and 57.51mm (2.264") height, weighing 0.21 lbs. It includes a snap-fit cover and removable terminal guards with snap-off tabs to match the number of terminals used. The snap-fit design allows tool-less assembly of all parts, including PC boards.



Designed for standard 35mm DIN rail mounting, the DMB-4773 operates over a temperature range of -20°C to +70°C. Optional accessories include clear and infrared polycarbonate covers, replacement terminal guards, and a dedicated PCB (DMB-4773-CB).

DMB-4773 Quick Information

Product Type: Box
Series: DMB
Canonical Name: DIN Rail Mount Multi-Board 36-Terminal Box
Subcategory: DIN Rail Mount Box

DMB-4773 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DMB-4773 Features

  • DIN rail mountable enclosure for multi-board systems.
  • 36 PCB terminals with 5.08mm spacing.
  • Gray ABS/PC blend with UL94 V-0 rating.
  • Operating temperature range -20°C to +70°C.
  • Snap-fit design for tool-less assembly.

DMB-4773 Applications

  • Ideal for industrial control system enclosures.
  • Used for housing multiple PCBs in DIN rail applications.
  • Suitable for terminal block distribution boxes.
  • Applied in building automation and HVAC systems.
  • Used in PLC and relay interface modules.

DMB-4773 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the DMB-4773?

-20°C to +70°C.

Is the DMB-4773 RoHS compliant?

Yes, RoHS3 compliant as stated by the manufacturer.

What are the external dimensions of the DMB-4773?

106.25mm (4.183") length, 90.20mm (3.551") width, 57.51mm (2.264") height.

What material is the DMB-4773 made of and what is its flammability rating?

Gray ABS/PC blend with UL94 V-0 rating.

How many PCB terminals does the DMB-4773 have?

36 terminals.

What is the terminal block spacing on the DMB-4773?

5.08mm (0.200").

What is the typical board thickness supported by the DMB-4773?

1.60mm.
