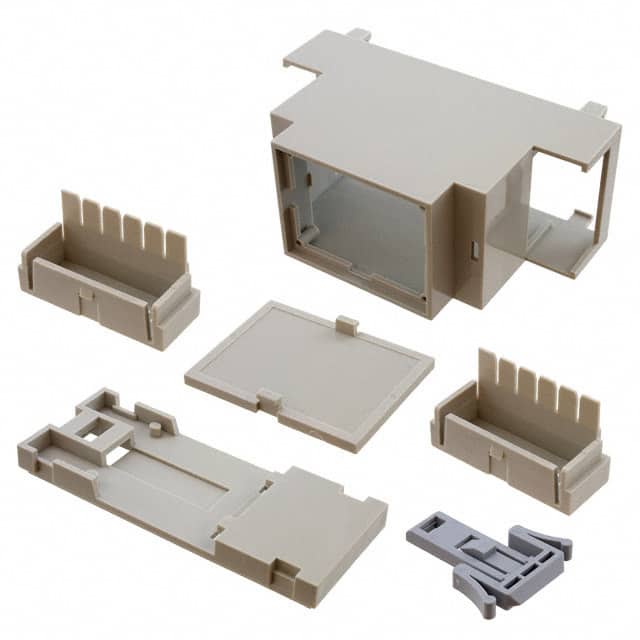

DMB-4770 The DMB-4770 is a gray ABS/PC blend DIN rail mount enclosure box from Bud Industries. It features 12 PCB terminals, a snap-fit cover, and measures 90.2mm x 36.3mm x 57.5mm.
Mfr Part #:

DMB-4770

Available from 1 distributors
Mfr Name: Bud Industries
Bud Industries
The DMB-4770 is a gray ABS/PC blend DIN rail mount enclosure box from Bud Industries. It features 12 PCB terminals, a snap-fit cover, and measures 90.2mm x 36.3mm x 57.5mm.
✓ Total Stock: 1 pcs

DMB-4770 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DMB-4770 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Container Type
Design
Features
Height
Length
Material
Material Flammability Rating
Mounting Type
Operating Temperature Range
Weight
Width
View Similar Products (0)

DMB-4770 Description

Short technical summary and product information.

The DMB-4770 is a DIN Rail Mount Multi-Board 12-Terminals enclosure from Bud Industries.



It features a snap-fit design for tool-less assembly of all parts including PC boards. The enclosure has three levels of PC board mounting locations. Removable terminal guards have snap-off tabs to match number of terminals used. Fits standard 35mm DIN rail.



Material is a durable UL94V-0 rated ABS/PC blend in light gray. External dimensions are 3.551" L x 1.429" W x 2.264" H. Operating temperature range is -20°C to +70°C. Weight is 0.09 lbs.

DMB-4770 Quick Information

Product Type: DIN Rail Mount Enclosure Box
Series: DMB
Canonical Name: DIN Rail Mount Multi-Board Box with 12-Terminals
Subcategory: DIN Rail Mount Boxes

DMB-4770 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DMB-4770 Features

  • Gray ABS/PC blend with UL94 V-0 rating.
  • Designed for standard 35mm DIN rail mounting.
  • Snap-fit cover for tool-less assembly.
  • 12 PCB terminals with removable guards.
  • Operating temperature -20°C to +70°C.

DMB-4770 Applications

  • Used for industrial control system enclosures.
  • Suitable for DIN rail mounted PC board assemblies.
  • Ideal for multi-board electronic projects.
  • Provides housing for terminal blocks and circuitry.

DMB-4770 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the DMB-4770?

-20°C to +70°C.

Is the DMB-4770 RoHS compliant?

Yes, RoHS3 Compliant.

What material is used for the enclosure?

Plastic, ABS/PC Blend with UL94 V-0 flammability rating.

What are the external dimensions?

Length 90.20mm (3.551"), Width 36.30mm (1.429"), Height 57.51mm (2.264").

How many PCB terminals does the DMB-4770 have?

12 PCB terminals.

Does the enclosure come with a cover?

Yes, cover included with snap-fit design.

What is the mounting type?

DIN Rail mounting for standard 35mm rail.
