| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
287 pcs
|
287 pcs | On Request | 1 | On Request | On Request | 95G/ | On Request | On Request | |
|
215 pcs
|
215 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Frequency | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Bits | |
| Number of Circuits | |
| Number of Elements | |
| Number of Gates | |
| Number of Inputs | |
| Operating Temperature | |
| Quiescent Current | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage |
The DM74ALS74AM from Texas Instruments is a dual D-type flip-flop featuring independent positive edge-triggered flip-flops. Each flip-flop includes individual D, clock, clear, and preset inputs, along with complementary Q and Q outputs. Information at the D input is transferred to the Q output on the positive-going edge of the clock pulse. Asynchronous preset and clear inputs allow for setting or clearing the Q output upon application of a low-level signal.
This device operates within a supply voltage range of 4.5V to 5.5V and supports a maximum clock frequency of 34MHz. It is designed with an advanced oxide-isolated, ion-implanted Schottky TTL process, offering improved AC performance over LS74 counterparts at approximately half the power. The flip-flop is available in a 14-SOIC package suitable for surface mounting.
Key electrical characteristics include a minimum high-level input voltage of 2V and a maximum low-level input voltage of 0.8V. The output current capabilities are a maximum high-level output current of -0.4mA and a minimum low-level output current of 8mA. Propagation delay is specified at a maximum of 18ns at 5V and 50pF. The operating free-air temperature range is from 0°C to 70°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DM74ALS74AM operates with a supply voltage between 4.5V and 5.5V.
The maximum clock frequency for the DM74ALS74AM is 34MHz.

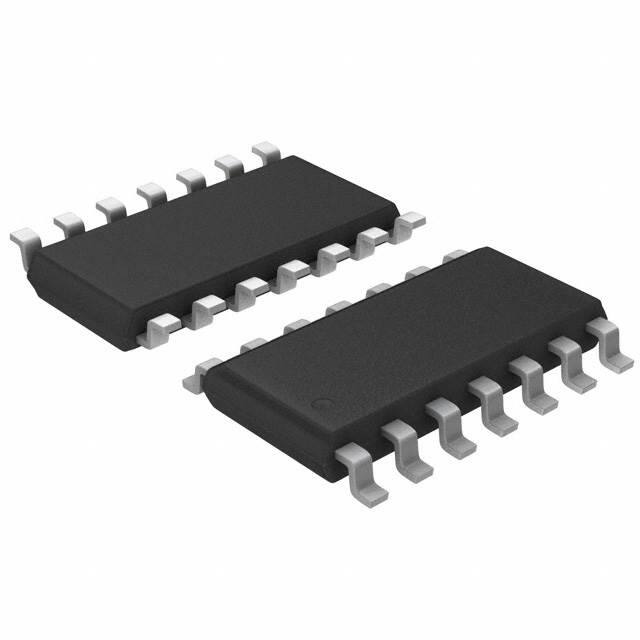

The DM74ALS74AM is available in a 14-SOIC package for surface mounting.
The DM74ALS74AM operates in a free air temperature range of 0°C to 70°C.
The DM74ALS74AM is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the DM74ALS74AM is 1 Unlimited.
