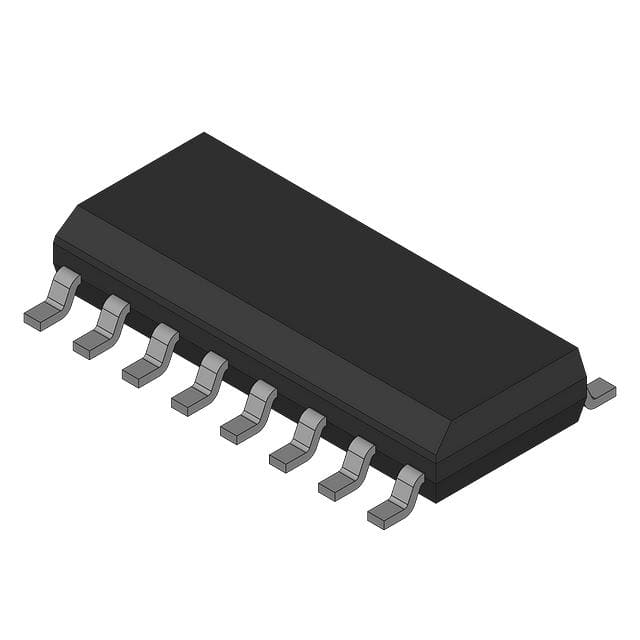

DM74ALS175MX The On Semiconductor DM74ALS175MX is a Quad D-Type Flip-Flop with a maximum clock frequency of 50 MHz. It operates within a 4.5V to 5.5V supply range and comes in a 16-SOIC package.
Mfr Part #:

DM74ALS175MX

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor DM74ALS175MX is a Quad D-Type Flip-Flop with a maximum clock frequency of 50 MHz. It operates within a 4.5V to 5.5V supply range and comes in a 16-SOIC package.
✓ Total Stock: 258,286 pcs
$ Price Range: $1.23

DM74ALS175MX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
258,286 pcs
On Request
258286 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DM74ALS175MX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Current
Function
Max Propagation Delay @ V, Max CL
Mounting Type
Number of Bits per Element
Number of Elements
Operating Temperature
Output Type
SVHC Present
Supplier Device Package
Trigger Type
Type
Voltage
View Similar Products (0)

DM74ALS175MX Description

Short technical summary and product information.

The DM74ALS175MX from On Semiconductor is a quad D-type flip-flop designed for digital logic applications. It features positive-edge triggering and an asynchronous clear input, with complementary outputs for each flip-flop.



This device operates with a supply voltage range of 4.5V to 5.5V and has a typical clock frequency maximum of 50 MHz, with the datasheet indicating a maximum of 80 MHz. The propagation delay is specified as 17ns at 5V and 50pF. It requires a quiescent current of 14 mA.



The DM74ALS175MX is housed in a 16-SOIC package, suitable for surface mounting. The operating temperature range is from 0°C to 70°C (TA). This component is pin and functionally compatible with LS family counterparts, utilizing an advanced Schottky TTL process.

DM74ALS175MX Quick Information

Product Type: Flip Flop
Series: 74ALS
Canonical Name: DM74ALS175MX Quad D-Type Flip-Flop with Clear
Subcategory: D-Type Flip Flops

DM74ALS175MX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DM74ALS175MX Estimated Pricing

Qty Low High
1+ $1.23 $1.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

DM74ALS175MX Features

  • Quad D-Type Flip-Flop with Clear
  • Positive Edge Triggered
  • 50 MHz Clock Frequency
  • 16-SOIC Surface Mount Package
  • 4.5V to 5.5V Operating Voltage

DM74ALS175MX Applications

  • Digital logic circuits
  • Data storage applications
  • Sequential logic designs
  • Control signal generation

DM74ALS175MX FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range?

4.5V to 5.5V.

What package is the device available in?

16-SOIC (0.154", 3.90mm Width).

What is the operating temperature range?

0°C to 70°C.

What trigger type does the flip-flop use?

Positive edge.

What output type does the device provide?

Complementary outputs.

What is the maximum clock frequency?

The rated clock frequency is 50 MHz (existing database) while the typical maximum from the datasheet is 80 MHz.

Does the device have a master reset function?

Yes, the function is master reset.
