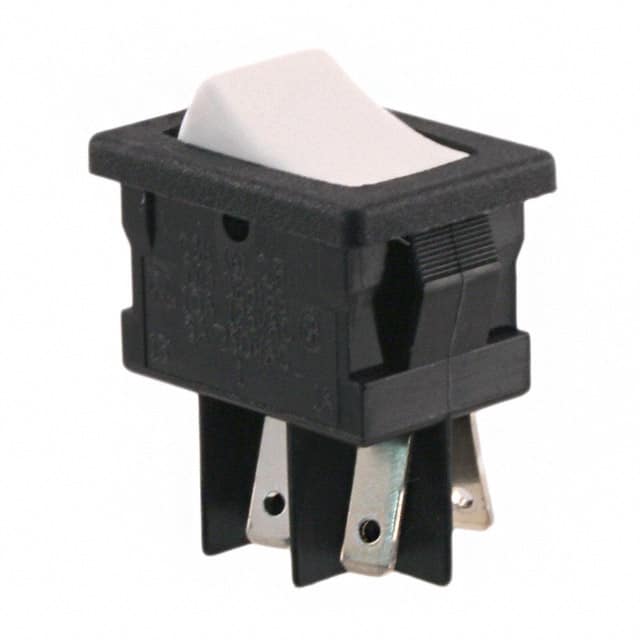

DM62J11S205Q The C&K Components DM62J11S205Q is a DPST rocker switch rated for 10A at 125V. It features quick connect terminals and a panel mount snap-in design.
Mfr Part #:

DM62J11S205Q

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components DM62J11S205Q is a DPST rocker switch rated for 10A at 125V. It features quick connect terminals and a panel mount snap-in design.
✓ Total Stock: 292 pcs
$ Price Range: $0.75

DM62J11S205Q Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
292 pcs
On Request
292 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DM62J11S205Q Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Material
Actuator Type
Circuit
Color
Current Rating (Amps)
Housing Material
Insulation Resistance
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

DM62J11S205Q Description

Short technical summary and product information.

The C&K Components DM Series DM62J11S205Q is a miniature double pole, single throw (DPST) rocker switch designed for power applications. It offers a contact rating of 10A at 125 VAC and 10A at 30 VDC, with a resistive rating of 10A at 30 VDC. The switch features quick connect terminals for easy installation and a panel mount, snap-in design for secure mounting.



Constructed with a 6/6 nylon housing and actuator, this switch is built for durability. The movable contacts are silver-plated copper or coin silver, while stationary contacts and terminals are silver-plated copper or brass. It operates within a temperature range of -20°C to +65°C and has an electrical life of 10,000 cycles at full load. The actuator is concave and white in color, with no specific marking.



Typical applications for this switch include computers, appliances, and electric tools where reliable power switching is required. Its double pole configuration in a miniature size makes it suitable for space-constrained designs. The switch is RoHS3 compliant.

DM62J11S205Q Quick Information

Product Type: Rocker Switch
Series: DM Series
Canonical Name: C&K Components DM62J11S205Q DPST On-Off Rocker Switch
Subcategory: Power Rocker Switches

DM62J11S205Q Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DM62J11S205Q Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

DM62J11S205Q Features

  • DPST On-Off rocker switch.
  • Rated for 10A at 125V AC.
  • Features quick connect terminals.
  • Panel mount snap-in design.
  • RoHS3 compliant construction.

DM62J11S205Q Applications

  • Ideal for computer systems.
  • Suitable for appliance controls.
  • Used in electric tool applications.
  • Reliable power switching needs.

DM62J11S205Q FAQs

5 frequently asked questions generated from this part’s specifications.
What is the contact rating for the DM62J11S205Q switch?

The contact rating is 10A at 125 VAC and 10A at 30 VDC.

What is the operating temperature range for this rocker switch?

The operating temperature range is -20°C to +65°C.

Is the DM62J11S205Q RoHS compliant?

Yes, the switch is RoHS3 compliant.

What type of terminals does the DM62J11S205Q switch use?

It uses quick connect terminals measuring 0.110" (2.8mm).

What is the circuit type of the DM62J11S205Q?

The circuit type is DPST (Double Pole Single Throw).
