| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19,500 pcs
|
19500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,844 pcs
|
1844 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
119 pcs
|
119 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Insertion, Removal Method | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions |

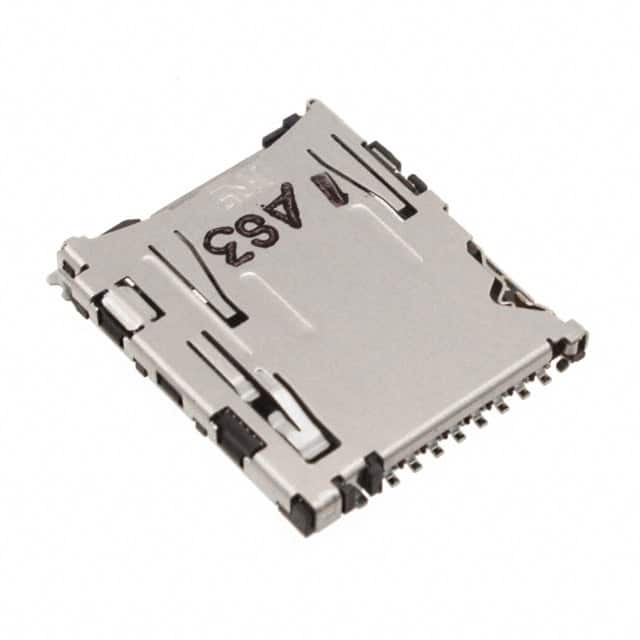

The DM3AT-SF-PEJM5 is a Secure Digital microSD card connector and ejector manufactured by Hirose Electric. It accepts microSD cards and features a connector with integrated ejector mechanism for push-in push-out card insertion.
This connector is surface mount, right angle mounted with a normal standard-top mounting feature. It has a height above board of 1.68 mm and offers 10 positions (8 + 2). The contact finish is gold. A built-in switch detects card presence.
The push-push (push-in push-out) insertion and removal method simplifies user operation. The part is designed for applications requiring a compact, reliable memory card interface.
It supports Secure Digital microSD cards.
It is surface mount, right angle mounted with a normal top mounting feature.
It has 10 positions (8 + 2).
Insertion and removal is push-in, push-out (push-push).
Yes, it includes a built-in switch.
The height above board is 1.68 mm.
