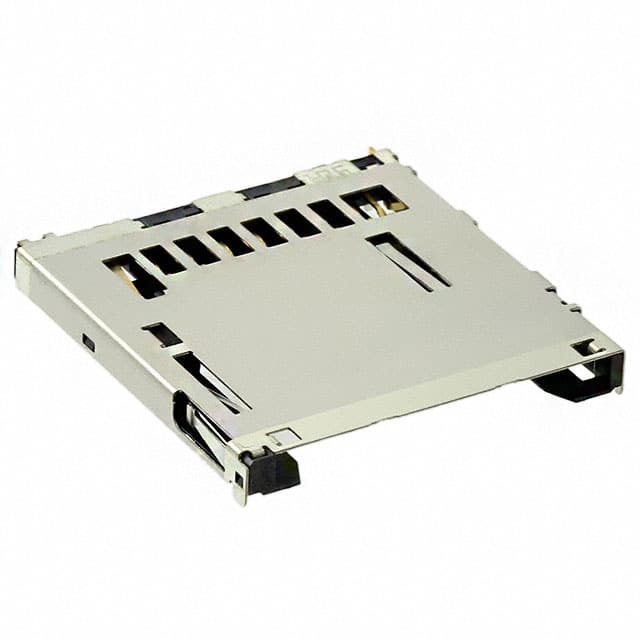

The DM1B-DSF-PEJ(82) is a memory card connector designed for Secure Digital (SD) cards, manufactured by Hirose Electric. This connector provides 12 positions (9 standard plus 3 for card detection and write protection), supporting reverse card entry with a push-in, push-out ejection mechanism. It is mounted using surface mount technology at a right angle, with a reverse bottom mounting feature that allows the card to be inserted from the bottom side of the PCB.
The connector features gold-plated contacts with a thickness of 8.00µin (0.203µm), ensuring reliable electrical connections. The height above board is only 0.114 inches (2.90 mm), making it suitable for compact designs. A built-in switch provides card detection functionality. The component is RoHS3 compliant and has an MSL rating of 1 (unlimited), indicating no moisture sensitivity concerns.
12 positions (9 + 3).
Surface Mount, Right Angle.
Secure Digital (SD) cards.
Push In, Push Out.
Gold with a thickness of 8.00µin (0.203µm).
0.114 inches (2.90 mm).
Yes, a switch for card detection is included.
