| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,150 pcs
|
3150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Insertion, Removal Method | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Termination Style |

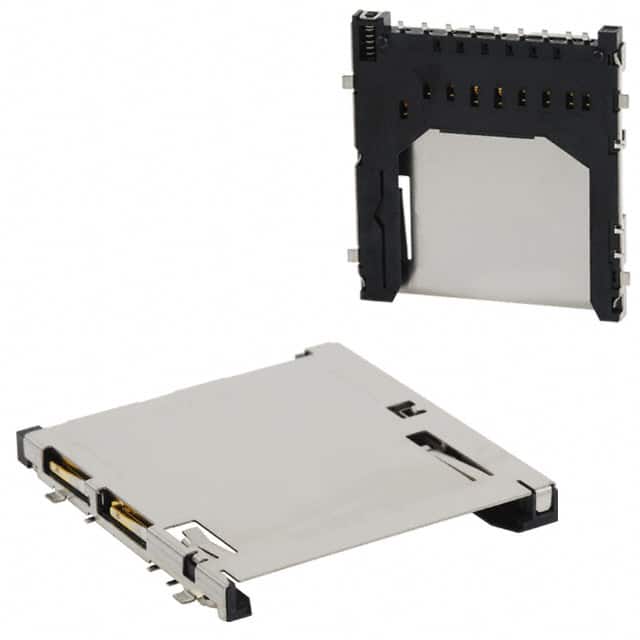

The Hirose Electric DM1AA-SF-PEJ(87) is a Secure Digital (SD) card connector with integrated ejector mechanism. It is designed for surface mount, right angle mounting, making it suitable for compact PCB layouts where card insertion is parallel to the board.
This connector features 12 positions arranged as 9+3, with gold contact finish of 0.203µm (8µin) for reliable electrical connections. The mounting height above board is 2.9mm. Additional features include a board guide for accurate card alignment and a switch for card detection.
The connector supports push-in, push-out card insertion and removal. It is compliant with RoHS3 and has an MSL of 1 (unlimited). The part is suitable for applications requiring secure digital memory card interfacing in consumer electronics, industrial equipment, and other devices.
12 positions (9+3).
Surface mount, right angle.
Gold with thickness of 0.203µm (8µin).
Board guide and switch for card detection.
Push in, push out.
2.9mm.
Yes, RoHS3 compliant.
